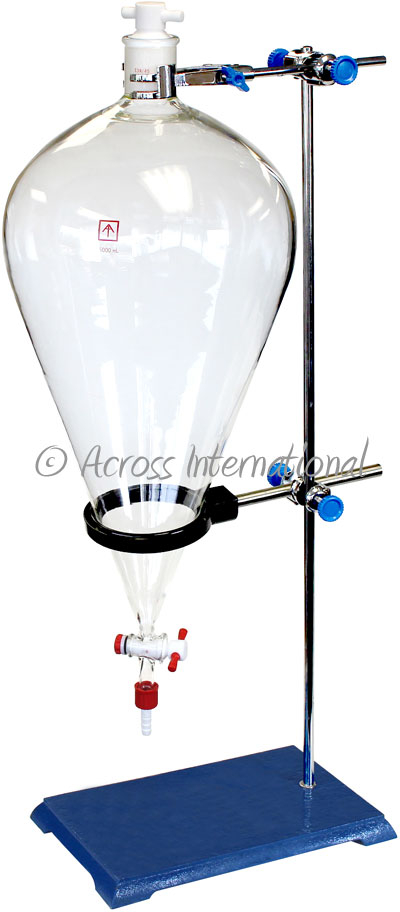

Ai 5 Liter Glass Separatory Funnel Kit with All PTFE Valves
$556.72
Introducing the new Ai separatory funnel kits with all PTFE valves. A separatory funnel, also known as separation funnel, separating funnel, or colloquially sep funnel, is a piece of laboratory glassware used in liquid-liquid extractions to separate (partition) the components of a mixture into two immiscible solvent phases of different densities. Typically, one of the phases will be aqueous, and the other a lipophilic organic solvent such as ether, MTBE, dichloromethane, chloroform, or ethyl acetate.
Description

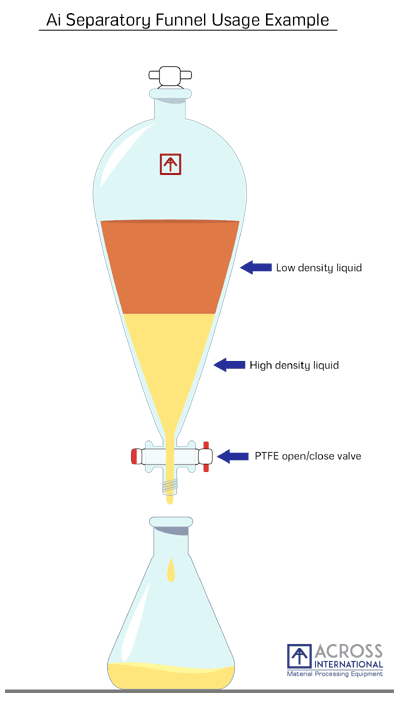

Introducing the new Ai separatory funnel kits with all PTFE valves. A separatory funnel, also known as separation funnel, separating funnel, or colloquially sep funnel, is a piece of laboratory glassware used in liquid-liquid extractions to separate (partition) the components of a mixture into two immiscible solvent phases of different densities. Typically, one of the phases will be aqueous, and the other a lipophilic organic solvent such as ether, MTBE, dichloromethane, chloroform, or ethyl acetate. All of these solvents form a clear delineation between the two liquids. The more dense liquid, typically the aqueous phase unless the organic phase is halogenated, sinks and can be drained out through a valve away from the less dense liquid, which remains in the separatory funnel.
Note: We do not offer warranty on glassware. Please contact us if you see any imperfections on the glassware once you received your package.
Specifications
| Model | SFunnel-5L |
| Separatory funnel | Capacity: 5000 mL Height: 23 inches Diameter: 9.5 inches Top port: 34/45 joint Bottom port: GL16 Material: high borosilicate glass 3.3 |
| Outlet | 3/8" hose barb, GL16 |
| Outlet open/close valve material | PTFE |
| Top stopper | 34/45 joint PTFE stopper |
| Setup dimensions (WxDxH) | 7 x 9.5 x 29 inches |
standard package
|
