Ai 3×2″ Swing-Away Heat Press with Dual Heating Platens – 220V
$487.13

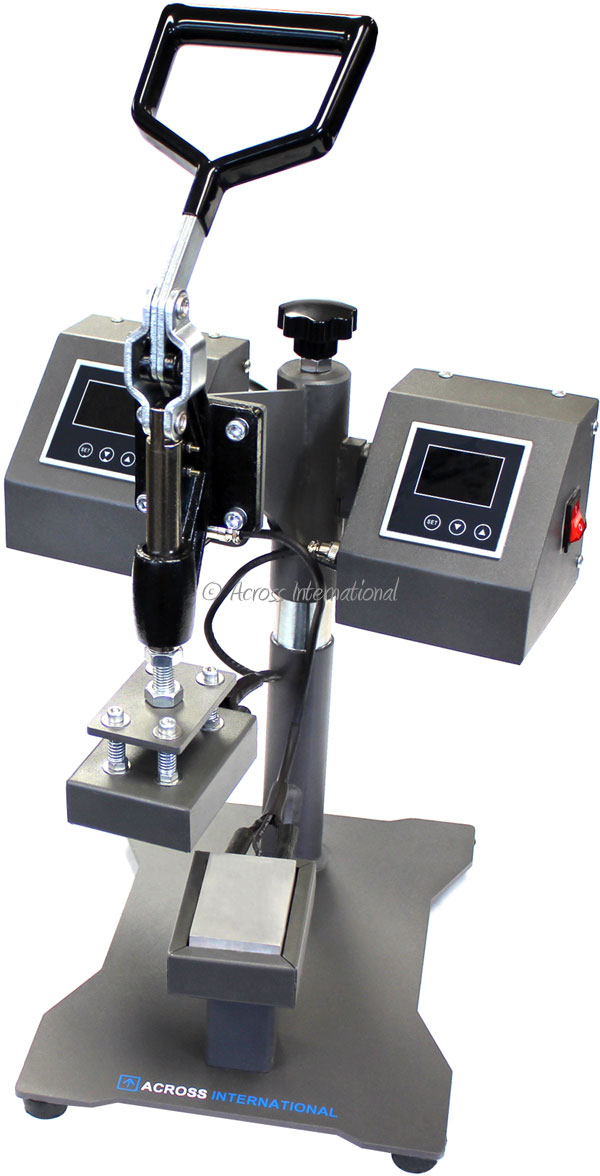

Ai HandPress 3 x 2 swing-away heated press has a top heat platen that can easily be moved away from the lower platen. It features dual built-in digital thermometers and heaters, allowing you to precisely control the temperature of your transfer. The digital timer will automatically begin a countdown as soon as the clamp is pressed shut, and provides an audible alarm once the predetermined amount of time has elapsed.
Description

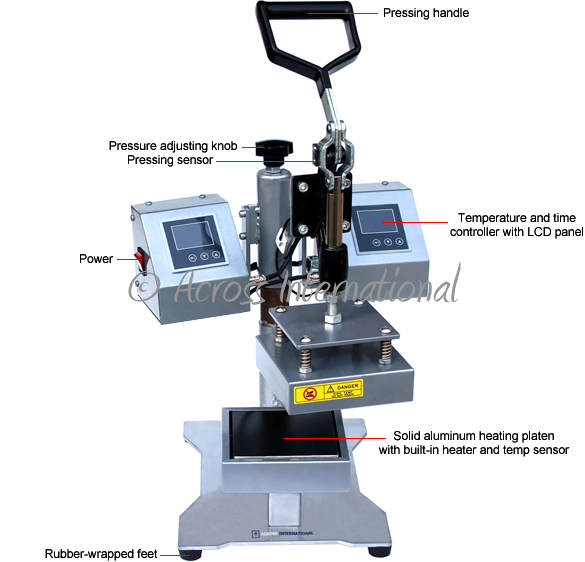

Ai HandPress 3 x 2 swing-away heated press has a top heat platen that can easily be moved away from the lower platen. It features dual built-in digital thermometers and heaters, allowing you to precisely control the temperature of your transfer. The digital timer will automatically begin a countdown as soon as the clamp is pressed shut, and provides an audible alarm once the predetermined amount of time has elapsed. The HandPress is easy to operate, with a padded open and close handle and a built-in adjustable pressure knob.
Features
– Solid aluminum heating platens for easy maintenance and even heating
– Swivel top for easy loading and unloading
– Digital timer and alarm
– Locking press arm to maintain consistent pressure
– Dual heating platens for increased temperature stability
– Dual LCD temperature controllers display in Fahrenheit or Celsius
– Adjustable pressure
– Excellent for creating solventless botanical extractions
Specifications
| Electrical requirements | 220V 50/60Hz, single phase, 1100 watts |
| Heated platen | Dimensions: 3 x 2 inches Number of heated platens: two Material: solid aluminum |
| Maximum downward pressure | 1,000 lbs or 167 psi (measured with an IEEE 1451.4 compliant, 20,000 lb pressure sensor, made and calibrated in the USA) |

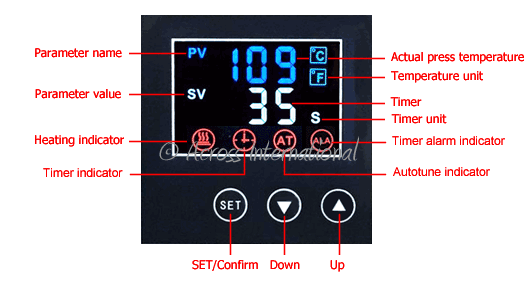

| Temperature controller | Type: PID controlled digital controller with LCD panel Number of controller installed: two Display unit: Fahrenheit or Celsius Temperature range: ambient to 480°F (250°C) Timer range: 1 to 999 seconds |
| Body material | Powder coated steel |
| Safety | Press arm lock, timer alarm |
| Unit weight/shipping weight | 30 Lb / 50 Lbs |
| Unit dimensions (WxDxH) | 14.5 x 13.5 x 19 inches |
| Shipping dimensions (WxDxH) | 19 x 18 x 22 inches |
| Recommended heat settings for botanical extractions | Flowers: 180°F to 230°F Concentrates: 150°F to 200°F |
| Warranty | 90 days |
Standard package
|
