Description
Model
M14
Electrical requirements
115V (±10%) 60Hz 1-Phase 240W Door heater: 90W LED: 3W
Temperature range
2°C to 8°C, with ±2°C uniformity
Compressor
Number of compressor: one Make: Embraco Refrigerant: R600a
Chamber
Dimensions: 22 x 18 x 53″ (WxDxH) Capacity: 13.8 Cu Ft Lighting: 3 watts low heat emission LED
Shelf
Material: powder coated steel Quantity: 7
Door
Glass, heated (90W heater)
Controller

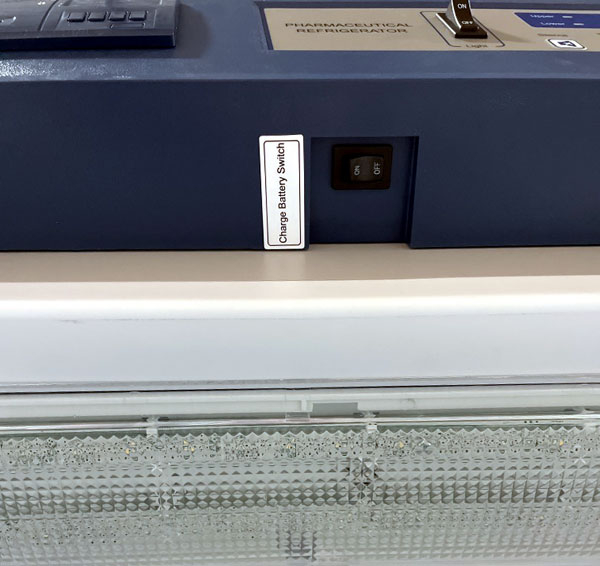

USB data export Backup battery: 48 hours (for controller only)
Cooling
Forced air circulation
Working environment
– Temperature: 16°C to 32°C (ideal temperature: 18°C to 25°C) – Humidity: <85% Rh – Altitude: < 2000 m / 6561 Ft – Stable, well-ventilated platform with no excessive dust – Keep freezer at least 12 inches from any walls or ceiling – Use dedicated power, do not share outlet – Extension power cable should be less than 10 feet is required – Freezer and power outlet should be grounded properly – Avoid direct sunlight, water spill and do NOT use freezer outdoor – Clean condenser fins and remove frost inside chamber at least once a month – Important! Do not plug in your unit. Leave your Ai refrigerator or freezer for 24 hours before turning the unit on for the first time.

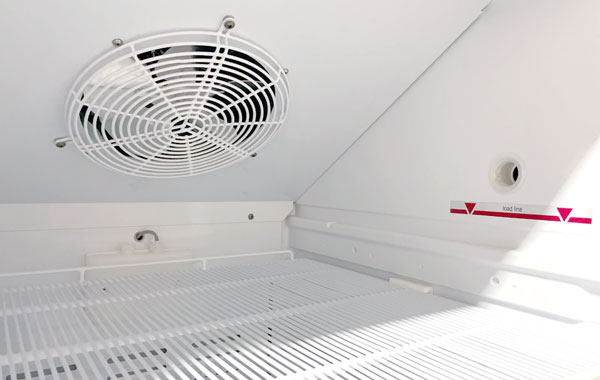

Access port
One, 1″ diameter, top right side of refrigerator
Casters
4 2 leveling feet
Unit weight & dimensions
256 Lbs 24.5 x 26 x 78.8″ (WxDxH)
Safety
Power failure protection Sensor failure protection High/low temperature alarms Condenser failure alarm Backup battery low alarm Door open alarm
Warranty
One year

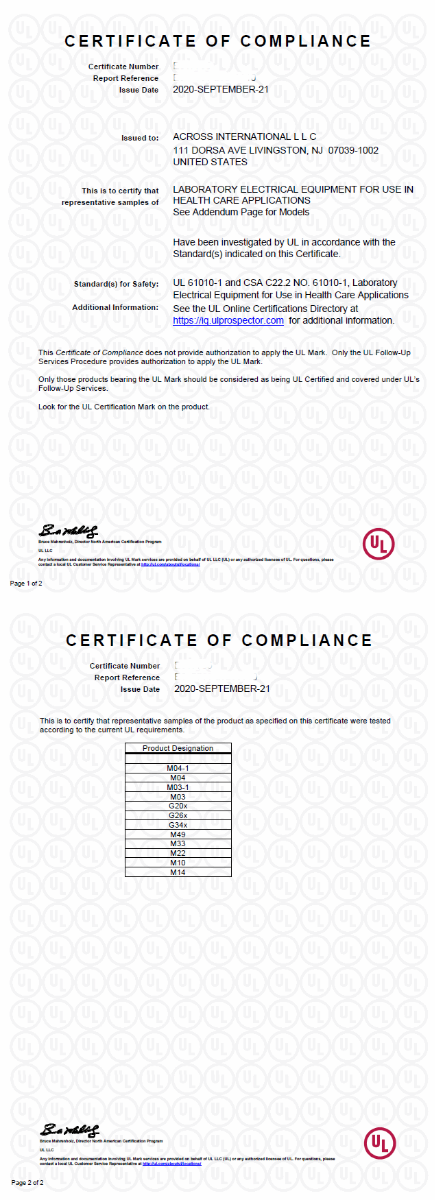

Compliance
UL 61010-1 CSA C22.2
