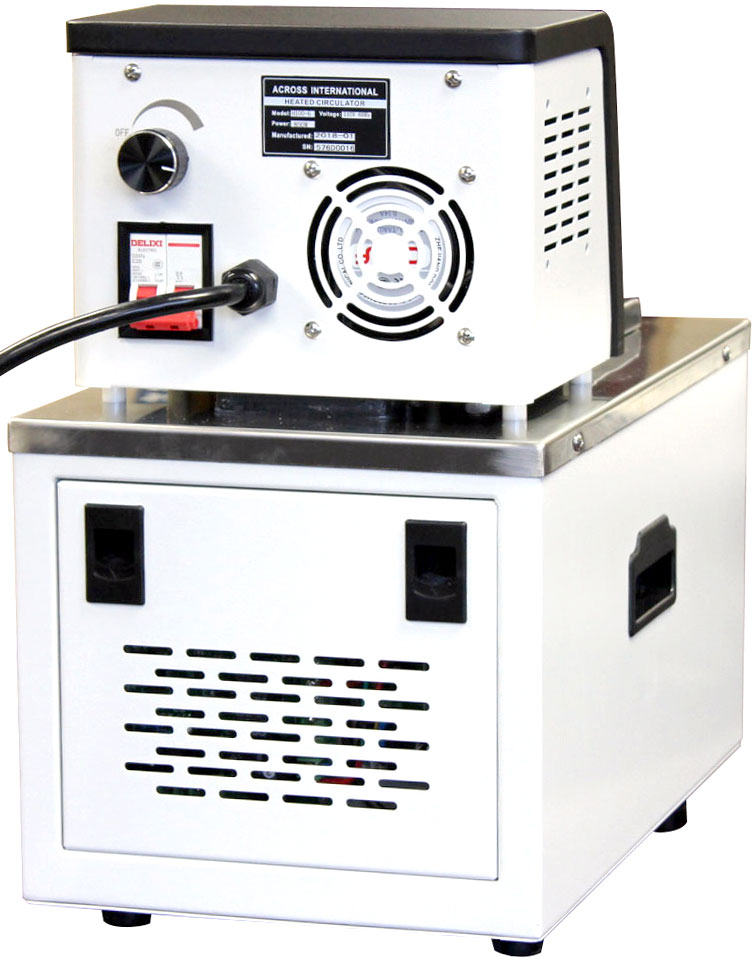

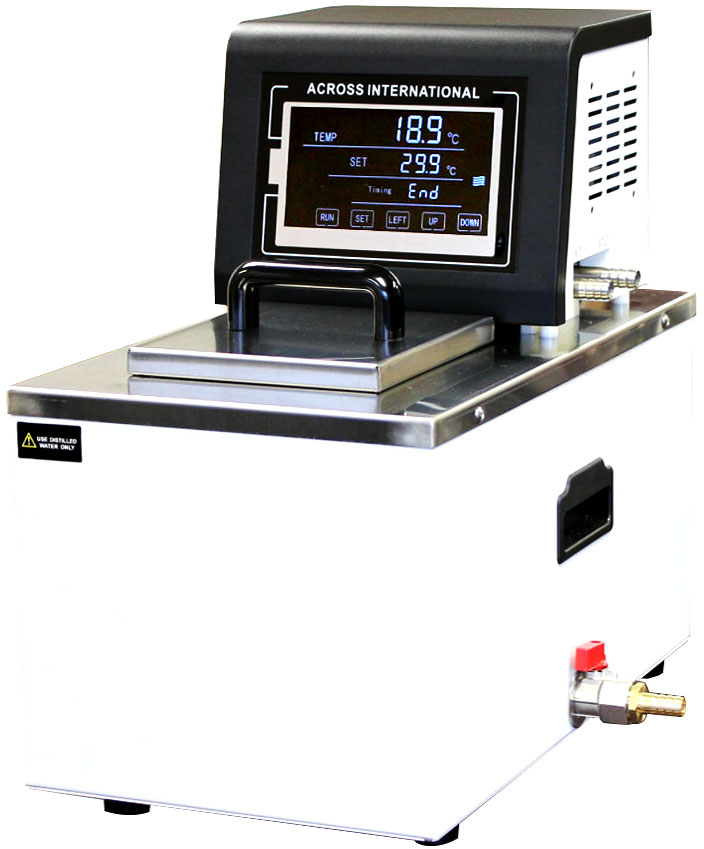

Ai 100°C 7L Capacity Compact Heated Recirculator 110V
Ai 100°C 7L Capacity Compact Heated Recirculator 110V - Image 2
Ai 100°C 7L Capacity Compact Heated Recirculator 110V - Image 3
Ai 100°C 7L Capacity Compact Heated Recirculator 110V - Image 4
Ai 100°C 7L Capacity Compact Heated Recirculator 110V - Image 5

Ai 100°C 7L Capacity Compact Heated Recirculator 110V

$1,656.24

The Ai H100 series heated recirculators offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while the 2nd generation PID controller gives you the ideal solution when you need precise temperature control.

Product total
Options total
Grand total
SKU: H100-7.110 Category: Brand:

Description









The Ai H100 series heated recirculators offer outstanding performance and high reliability as well as quiet operation and ease-of-use. Powerful force/suction pump provides constant flow rates, while the 2nd generation PID controller gives you the ideal solution when you need precise temperature control.

 Features

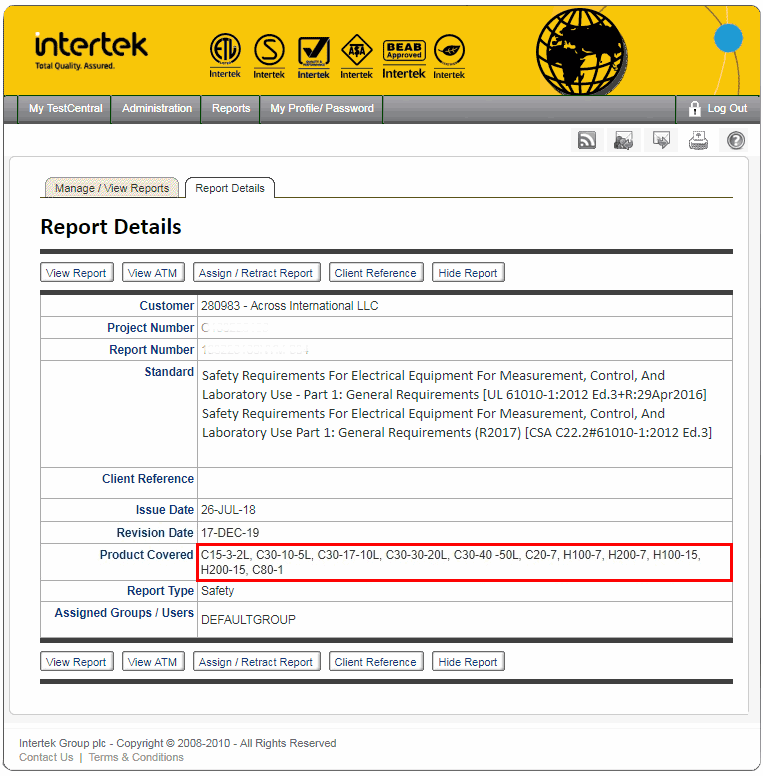

  • ETL tested to UL and CSA standards
  • Powerful 1,500 watts heater
  • Adjustable pumping speed up to 20 liters per minute
  • 2nd generation 7″ TFT touch screen controller
  • ANSI standard all stainless steel reservoir
  • All steel construction for durability
  • Small footprint saves valuable lab space
  • Connection tubing included
  • Recommended for 2L to 10L distillation systems

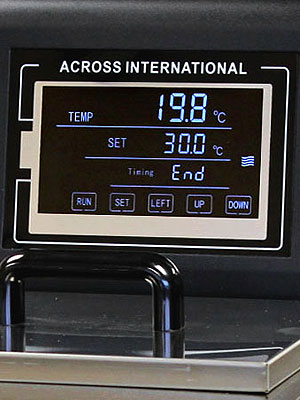

7″ TOUCH SCREEN CONTROLLER









Specifications

Specifications



 Model H100-7
 Temperature range Ambient to 100°C (No load)
 Electrical requirements
 110V 60Hz 1-Phase 1,600 watts
 Heating capacity 1,500 watts
 Recirculating pump Pumping speed: 20 liters per minute, adjustable
 Maximum head: 16 feet or 5 meters

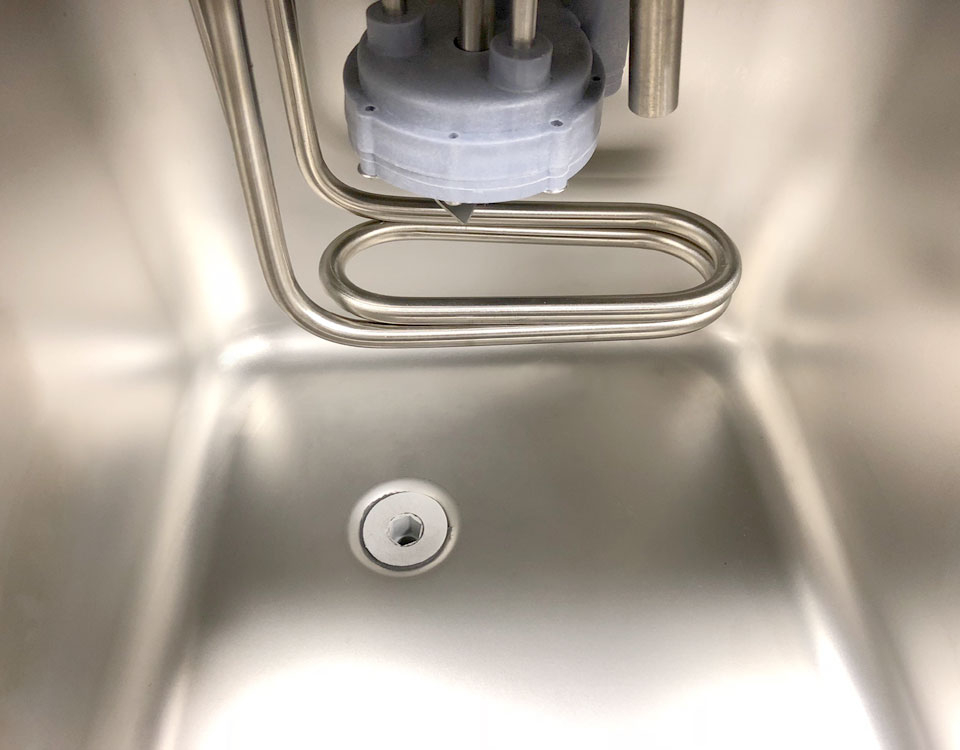

 Reservoir
 Dimensions: 7 x 10.5 x 5.5" (WxDxH)
 Material: Type 304 stainless steel
 Capacity: 7 liters or 1.9 gallons
 Thermo fluid connection: 3/8" hose barb x 2
 Thermo fluid drain port: 3/8" hose barb with on/off valve
 Temperature controller Type: Digital microprocessor PID controlled
 Display: 7" touch screen
 Display unit: Celsius °C
 Temperature step: 0.1°C
 Temperature accuracy: +/- 2°C
 Temperature range: Ambient to 100°C
 Working environment -15°C/5°F to 25°C/77°F, at <66% humidity
 Built-in swivel casters No
 Unit/shipping dimensions
 10.5 x 17 x 17" / 17 x 20 x 22" (WxDxH)
 Unit/shipping weight 30s / 36s
 Safety Short circuit and ground protection
 Over-current protection
 Over-temperature protection
 Upper/lower temperature alarm protection
 Warranty One year
 Compliance UL 61010-1 :2012 Ed.3+R:29Apr2016
 CSA C22.2#61010-1 :2012 Ed.3
Standard Packages



 Part description

 Quantity

Part image

 Ai H100-7 100°C 7L heated recirculation1 pc

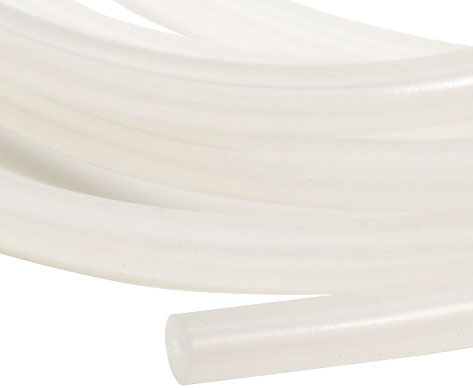

 3/8" tubing (10 ft)1 pc
 1/2" NPT to 3/8" hose barb drain port adapter1 pc
 User's manual1 pc
