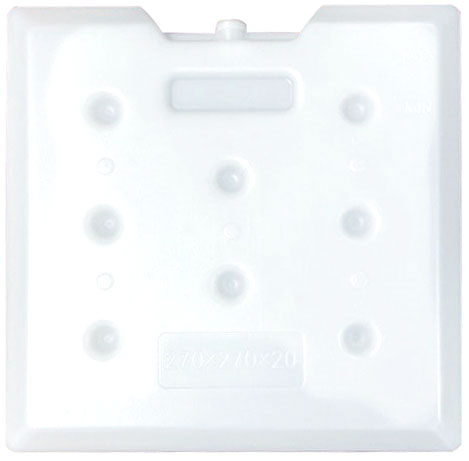

Ai 10.25×10.25″ Cold Pad with 2-8°C Rechargeable PCM

The Ai cold pad with 2-8C rechargeable Phase Change Material (PCM) is used to safely ship products with unique temperature constraints, like the Covid-19 vaccines. Dimensions: 10.25 x 10.25 x 0.75″ (LxWxH).

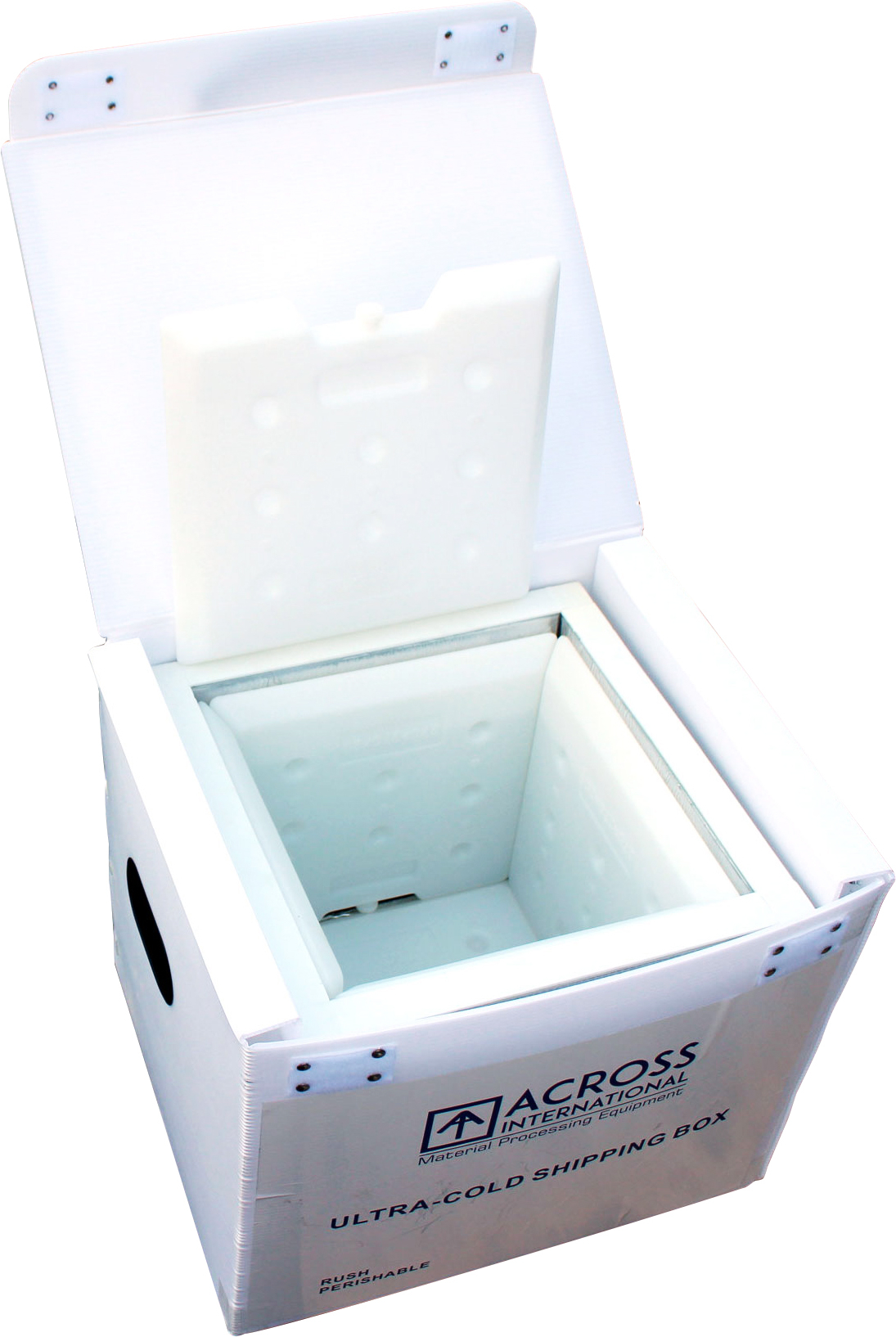

Recommended SOP for Ai 2-8C and -25C thermal shipping box with PCM cold pads

• Charging your PCM cold pads

• 2-8C: leave your PCM in a -18C freezer for 24 hours. Place PCM sideway, NOT upright, and leave 1 inch space between each PCM
• -25C: leave your PCM in a -40C freezer for 24 hours. Place PCM sideway, NOT upright, and leave 1 inch space between each PCM
• PCM is fully charged once the thermal fluid inside becomes solid
• After removing from the freezer, leave PCM in room temperature for 15 minutes before use
• Place one PCM in the bottom of the box, and then four PCM’s alongside the inner walls of the box
• Place your load into the box (empty space inside PCM will not affect duration)
• Place your thermal data logger sensor, if required
• Place the 6th PCM on top of your load
• Close the VIP insulated cover and make sure it is tight
• After 72 hours, replace all six PCM with new charged PCM
