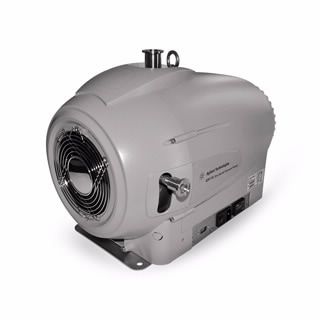

Agilent IDP-15 dry scroll vacuum pump with inlet isolation valve
Agilent IDP-15 dry scroll vacuum pump with inlet isolation valve - Image 2
Agilent IDP-15 dry scroll vacuum pump with inlet isolation valve - Image 3
Agilent IDP-15 dry scroll vacuum pump with inlet isolation valve - Image 4
Agilent IDP-15 dry scroll vacuum pump with inlet isolation valve - Image 5

Agilent IDP-15 dry scroll vacuum pump with inlet isolation valve

$13,760.73

The new Agilent IDP-15 dry scroll pump is designed for extremely quiet (<50dBA) and low vibration operation, delivering a peak pumping speed of 9 cfm at 60Hz.With a single-sided scroll design it offers fast, easy yearly maintenance and low cost of ownership. Agilent IDP dry scroll pumps are oil-free, compact, quiet, high performance vacuum pumps. IDP pumps use a single-sided scroll design that allows for a straightforward 15 minute maintenance procedure with simple tools.

Product total
Options total
Grand total
SKU: IDP-15-X3815-64010 Category: Brand:

Description

The new Agilent IDP-15 dry scroll pump is designed for extremely quiet (<50dBA) and low vibration operation, delivering a peak pumping speed of 9 cfm at 60Hz.With a single-sided scroll design it offers fast, easy yearly maintenance and low cost of ownership.

Agilent IDP dry scroll pumps are oil-free, compact, quiet, high performance vacuum pumps. IDP pumps use a single-sided scroll design that allows for a straightforward 15 minute maintenance procedure with simple tools. Large pumping speeds and compact sizes are ideal for many applications in the research, analytical instrument, and laboratory markets.

IDP pumps are hermetic, with the motor and all bearings completely isolated from the vacuum path. This design extends the bearing life and provides clean, dry vacuum to the application. An inlet isolation valve is available as an integral option that adds no additional height to the pump.

Certificate of Compliance



Specifications
Base pressure (50 Hz) - Torr & mbar

1 x 10-2 Torr             1.3 x 10-2 mbar

Base pressure (60 Hz) - Torr & mbar

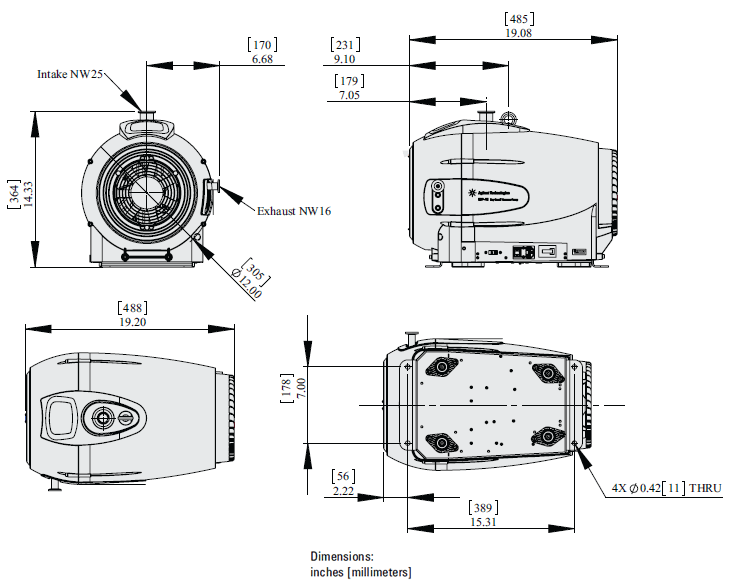

Dimensions (WxHxL)

13.1 in x 14.3 in x 19.1 in

Exhaust Connection

NW16

Height

14.3 in

Inlet Connection

NW25

Input Voltage

220-230 VAC                100-115

Length

19.1 in

Noise Level

50 dB(A)

Pumping Speed (50 Hz)

12.8 m3/h      214 L/min       7.5 CFM

Pumping Speed (60 Hz)

15.4 m3/h      256 L/min       9.1 CFM

UNSPSC Code

40151502

Width

13.1 in

Standard Packages

Standard package



 Part description

 Quantity

Part image

Agilent IDP-15 dry scroll vacuum pump with inlet isolation valve
1 pc

 Agilent North America 15A/125V power cord (656458203)
1 pc
Quick Start Card1 pc
Hex Key1 pc
Breather Vent1 pc
10 A Fuse1 pc
