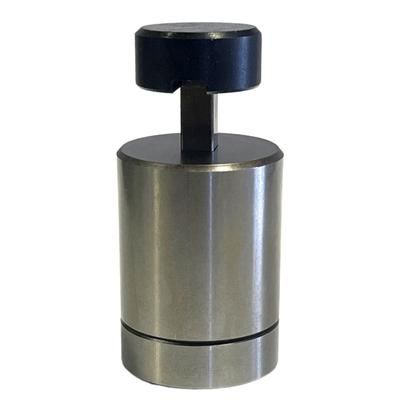

6 x 6 mm Square Dry Pressing Die Set
6 x 6 mm Square Dry Pressing Die Set - Image 2
6 x 6 mm Square Dry Pressing Die Set - Image 3
6 x 6 mm Square Dry Pressing Die Set - Image 4

6 x 6 mm Square Dry Pressing Die Set

$680.59

A set of 6 x 6 mm square hardened steel dry pressing die set for pellet presses, ready for you to make 6 x 6 mm square pellets. Die set includes Two 6 x 6 mm core die made of highly polished hardened steel One steel sleeve One steel support plate One push rod One steel cylinder pellet ejector One guard ring Important!!! Always wear protection goggles during operation Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.

SKU: SDS6.S Category:

Description

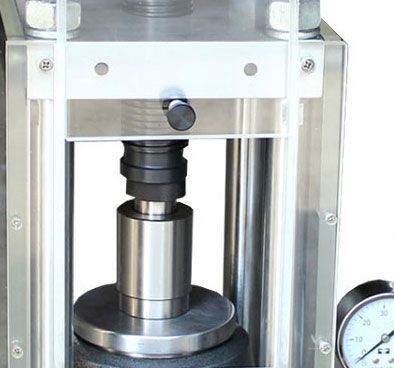

A set of 6 x 6 mm square hardened steel dry pressing die set for pellet presses, ready for you to make 6 x 6 mm square pellets.

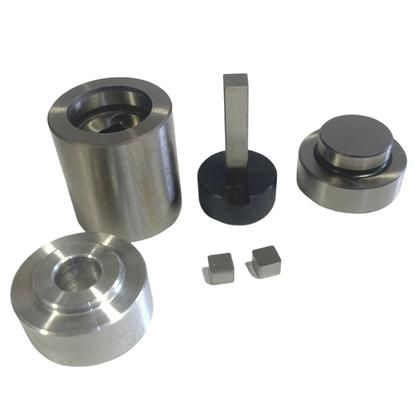

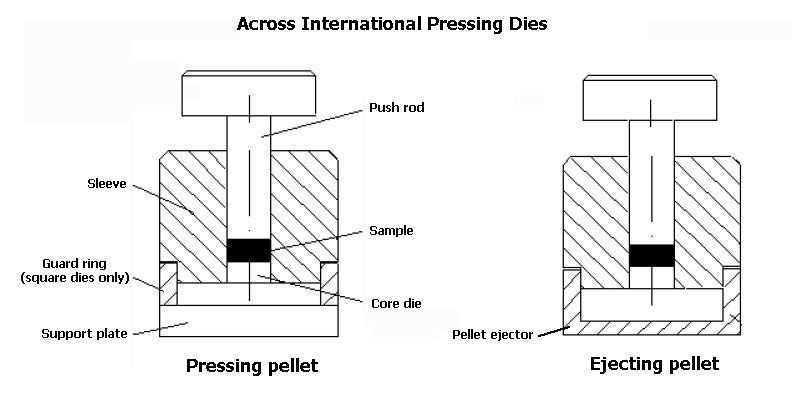

Die set includes

  • Two 6 x 6 mm core die made of highly polished hardened steel
  • One steel sleeve
  • One steel support plate
  • One push rod
  • One steel cylinder pellet ejector
  • One guard ring



Important!!!

  • Always wear protection goggles during operation
  • Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.
Specifications

Specifications

Maximum Pressure3 tons
Rockwell HardnessRc 62
Pellet Size6 x 6 mm
Sleeve Height20 mm
Sleeve Diameter (OD)30 mm
Height        47 mm (assembled without sample)
Tolerance0.01-0.02 mm (10-20 micron)
MaterialW18Cr4V hardened carbon tool steel
Max. Load Height10 mm
