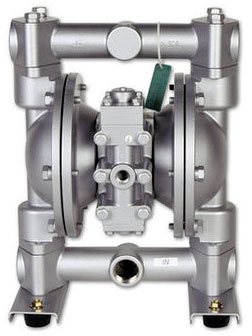

46.2 gpm Air Powered Double Diaphragm Liquid Pump

46.2 gpm Air Powered Double Diaphragm Liquid Pump

$3,938.26

LiquidPro LP46 series Air Powered Double Diaphragm (AODD) pumps provide a maximum flow rate of 49 gallons per minute. Pumps are available in aluminum, stainless steel (316), cast iron, polypropylene, and Kynar construction, with a wide variety of diaphragm materials.

Category: Tag:

Description

  • Model
  • LP46
  • Max flow rate
  • 46.2 gallon per minute (gpm), or 175 liter per minute
  • Liquid inlet/outlet
  • 1″ female NPT
  • Max liquid temperature
  • 212°C
  • Max solid
  • 3/16 inch
  • Air inlet
  • 3/8″ female NPT
  • Air exhaust
  • 3/4″ female NPT
  • Air motor material
  • Aluminum
  • Body material
  • 316 grade stainless steel
  • Elastomer material
  • EPDM (not suitable for use with heptane, ethanol or denatured isopropanol)

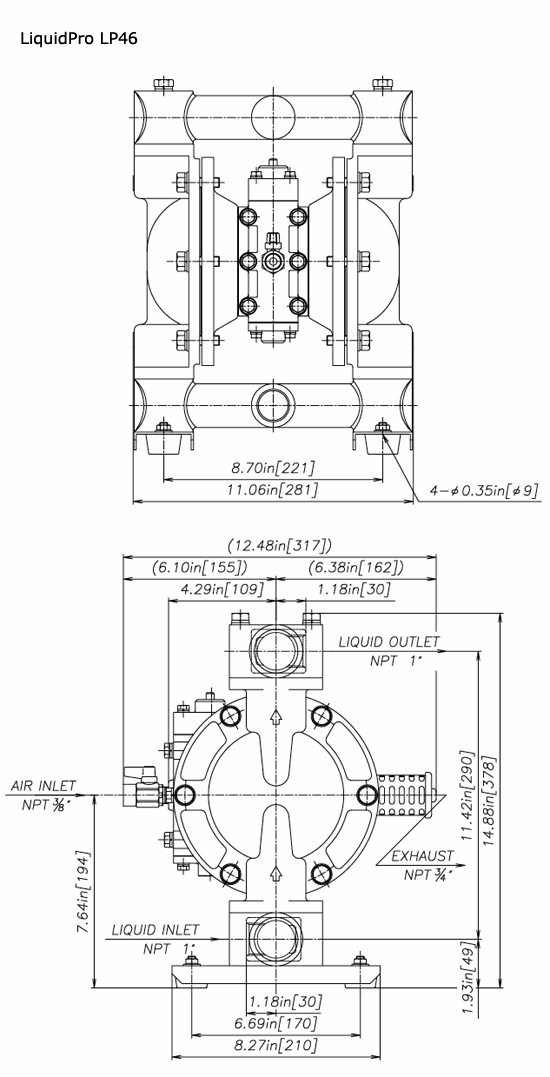

  • Pump dimensions
  • 8.3 x 11 x 15″ (WxDxH)
  • Recommended for
  • 100L or 200L stainless steel reactors
