316L SST 100C UL Certified 16 CF Vacuum Oven with 6 Heating Shelves
$26,943.16
316L SST 100C UL Certified 16 CF Vacuum Oven with 6 Heating Shelves * SST (stainless steel) tubing refers to internal tubing and compression. external tubing not included. * 220V model’s door opens from the left. Introducing the new Across International UL certified 16 cu ft vacuum ovens, this certification is required by many municipalities, and it also provides a higher standard of equipment safety and lifespan.
Description
316L SST 100C UL Certified 16 CF Vacuum Oven with 6 Heating Shelves
* SST (stainless steel) tubing refers to internal tubing and compression. external tubing not included.
* 220V model’s door opens from the left.
Introducing the new Across International UL certified 16 cu ft vacuum ovens, this certification is required by many municipalities, and it also provides a higher standard of equipment safety and lifespan. Also come standard is the secondary over-temp protection dial, 2.5X larger internal tubing for a quicker vacuum purge and release, and a secondary door handle to provide a better sealing on the door gasket. Come in 110V or 220V and backed by our 2-year warranty.

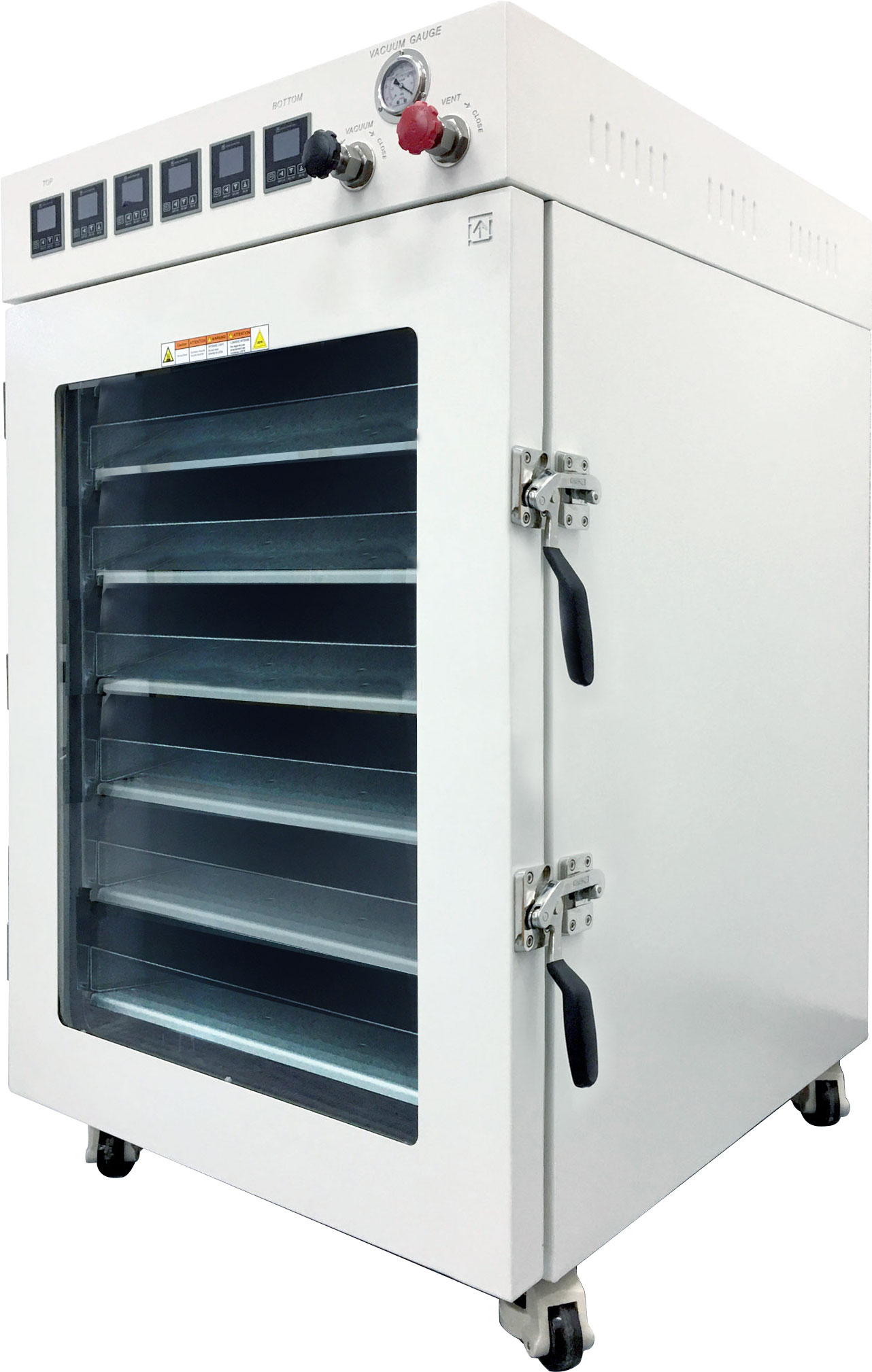

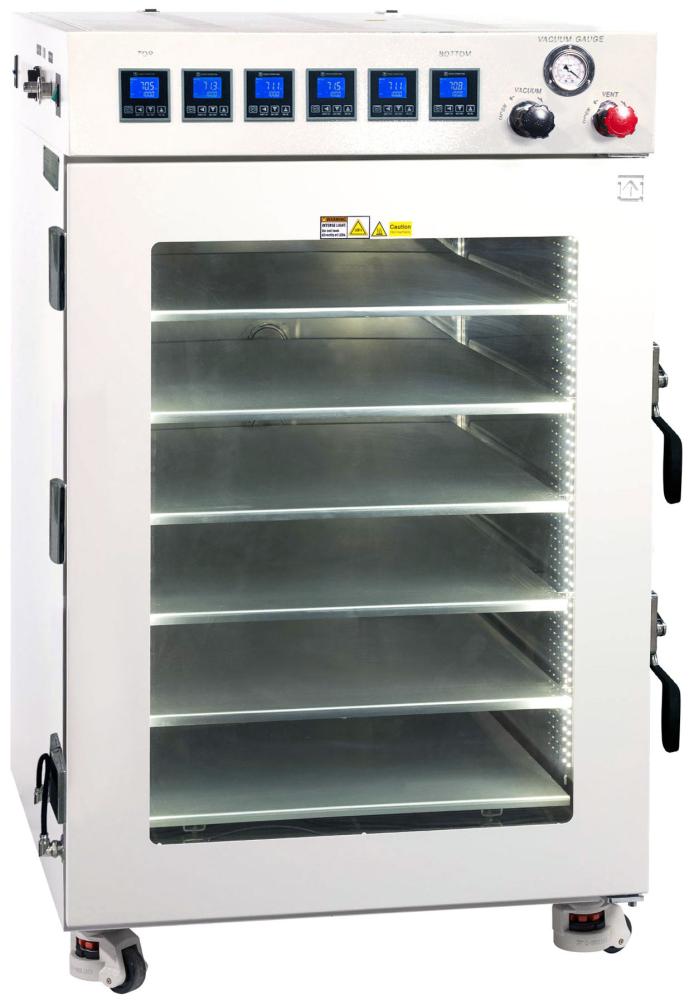

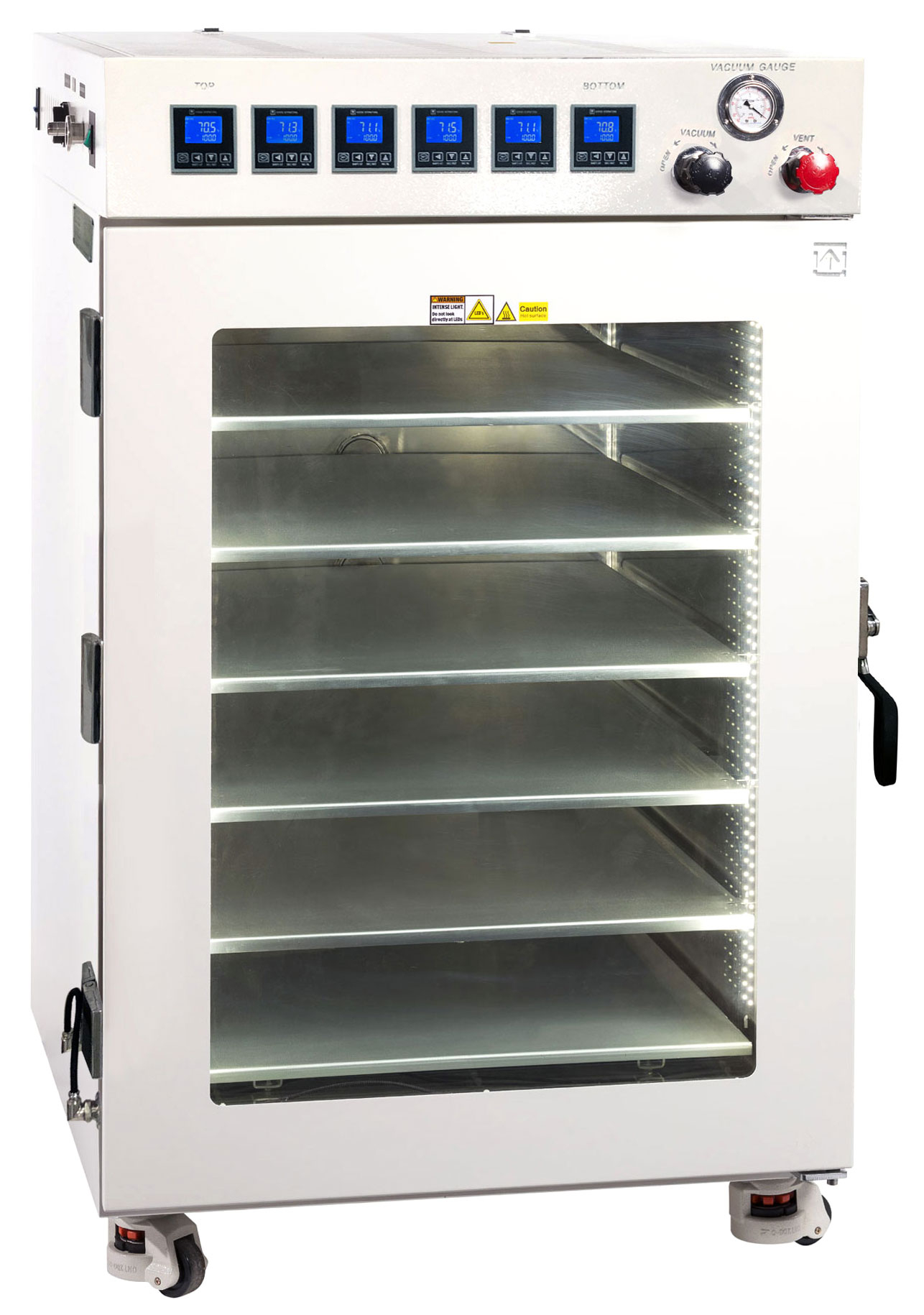

The AT160 series digital vacuum oven features a gigantic 16 cubic feet easy-to-clean stainless steel chamber with a large 3/4″ tempered glass safety window. With our new internal shelf heating technology, each shelf in these lab and industrial ovens has its own heater, in-shelf temperature sensor and temperature controller, together with great thermal-conductive aluminum and our new low proportional controller technologies, the result is perfect uniformity, accurate temperature, super-fast heating rates, minimum heat loss/exterior temperature and very low power consumption.
Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving our warehouses.
- UL certified

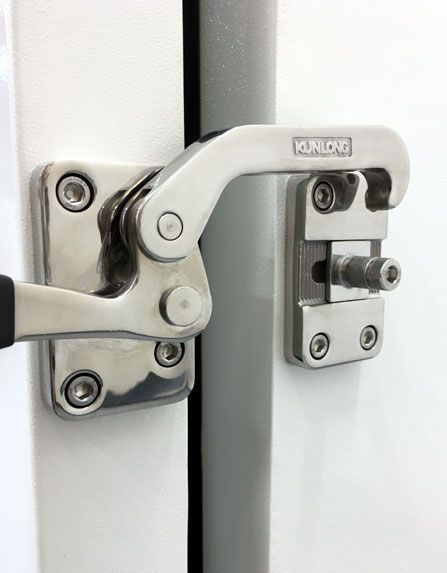

- New stainless steel, easy-open handle with tension adjustable latch (110V model).

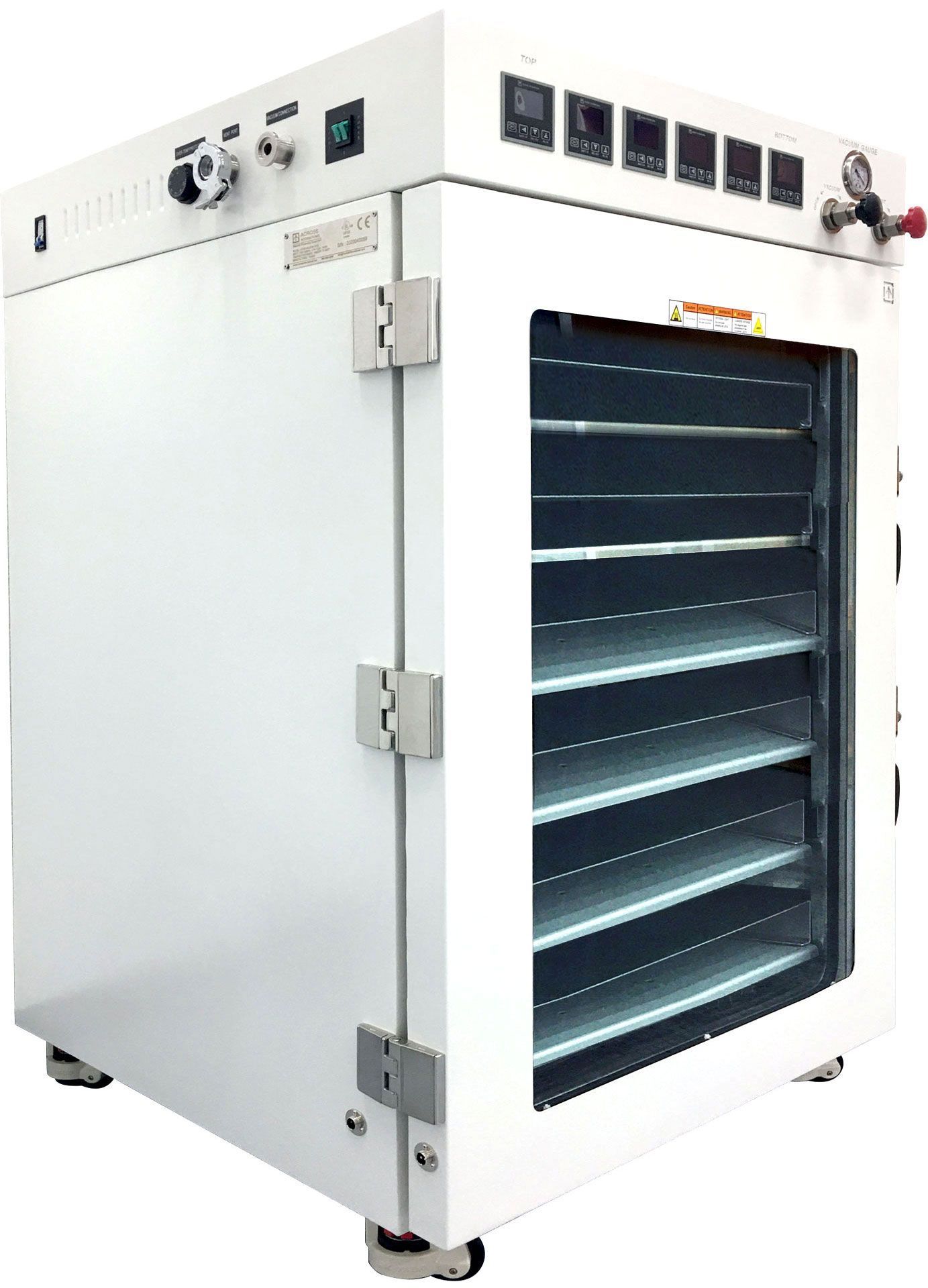

- New re-enforced stainless steel door hinges (110V model).
- KF25 inlet filter keeps your oven clean at all time (included with oven purchase).
- Thermo-conductive to thermally conductive.
- All stainless steel internal vacuum tubing and compression fittings that holds vacuum 10 times longer and deeper than with rubber tubing. They also provide you the most sanitary working environment, while last for decades without maintenance.
- Oil-filled mechanical vacuum gauge ensures the most accurate and stable measurements.
- Built-in secondary over-temp dial for added protection.
- Adjustable vacuum and vent port with needle valves gives you control over vacuum and vent rates, while also largely enhanced durability.
- 4th gen low proportional gain temperature controller keeps your oven temperature accurate.
- Built-in white LED lights
- Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
- Dual layer observation window with 3/4″ tempered safety glass.
- Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
- A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
- Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
- Built-in swivel casters with leveling feet.
- For improved temperature ramping, run the auto-tune procedure as outlined in the manual
- All ovens shipped from our Nevada or New Jersey locations for quick delivery.
- 2-year warranty and lifetime US-based parts and service support.
- Guaranteed US based phone and email assistance from an Ai support engineer within 30 minutes
Manufactured in accordance with
- UL 61010-1
- CSA C22.2
- ISO 9001:2000
- ISO 12100-1:2003, ISO 12100-2:2003
- EN1050:1996, EN294:1992, EN60204-1:2006

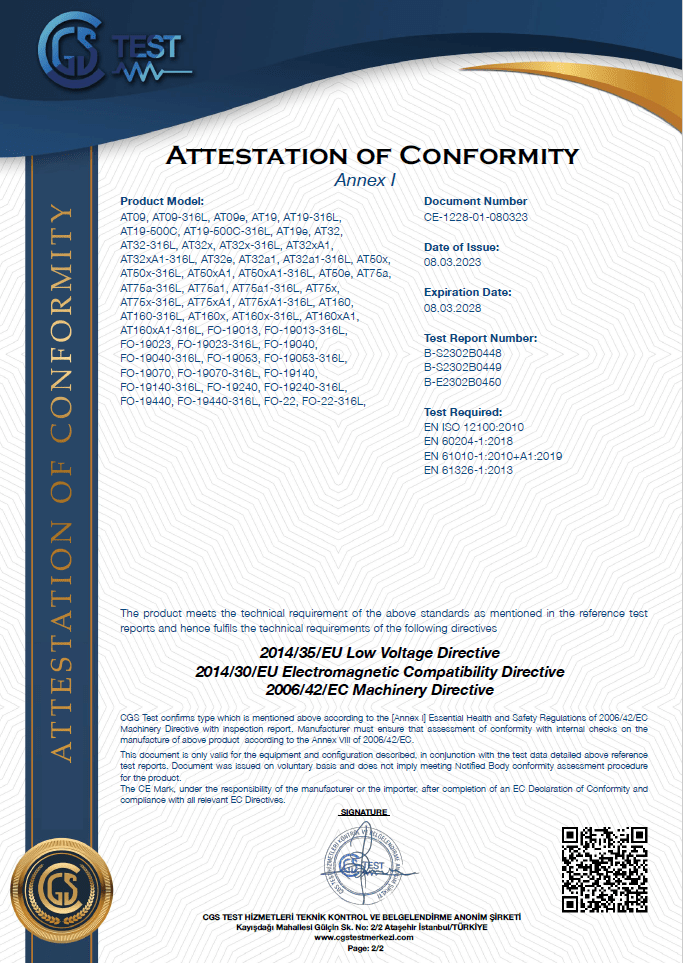

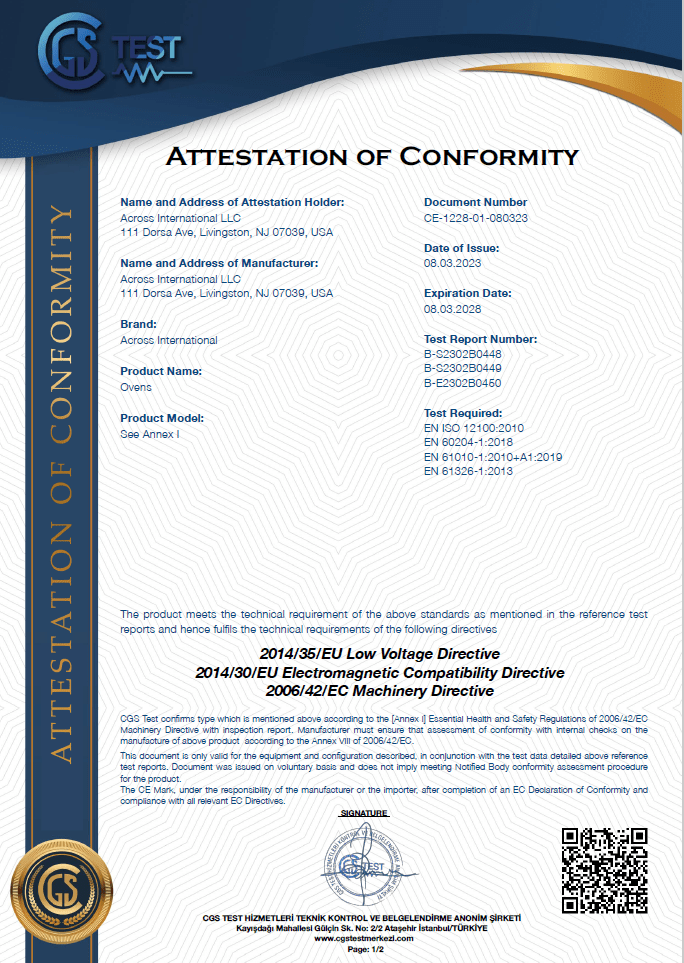

- CE
IMPORTANT! NEVER LEAVE YOUR OVEN UNATTENDED WHILE OPERATING. Across International is not responsible for any loss of material inside of the oven.
Vacuum oven specifications
| Electrical requirements | 110V +/-10% 60Hz 1-PH 13.6A, 1,500 watts or 220V +/-10% 50/60Hz 1-PH 6.8A, 1,500 watts |
| Heating | 250 watts x 6, built into 6 aluminum shelves, for the fastest, most energy efficient and uniform heating. |
| Chamber | Dimensions: 25.6 x 30 x 35.5" (WxDxH) Material: Stainless steel Capacity: 16 cubic feet |
| Temperature control | Controller: low proportional gain, microcomputer PID controlled with LCD display Range: ambient to 100°C (or 212°F) Display units: Fahrenheit or Celsius Uniformity: +/- 5% of setpoint Dwelling timer range: 1 to 9999 minutes |

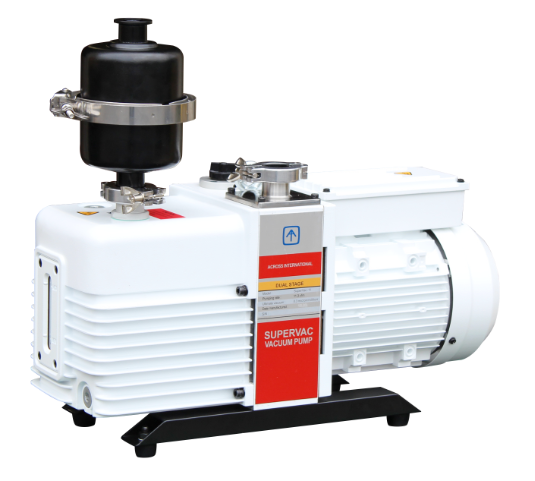

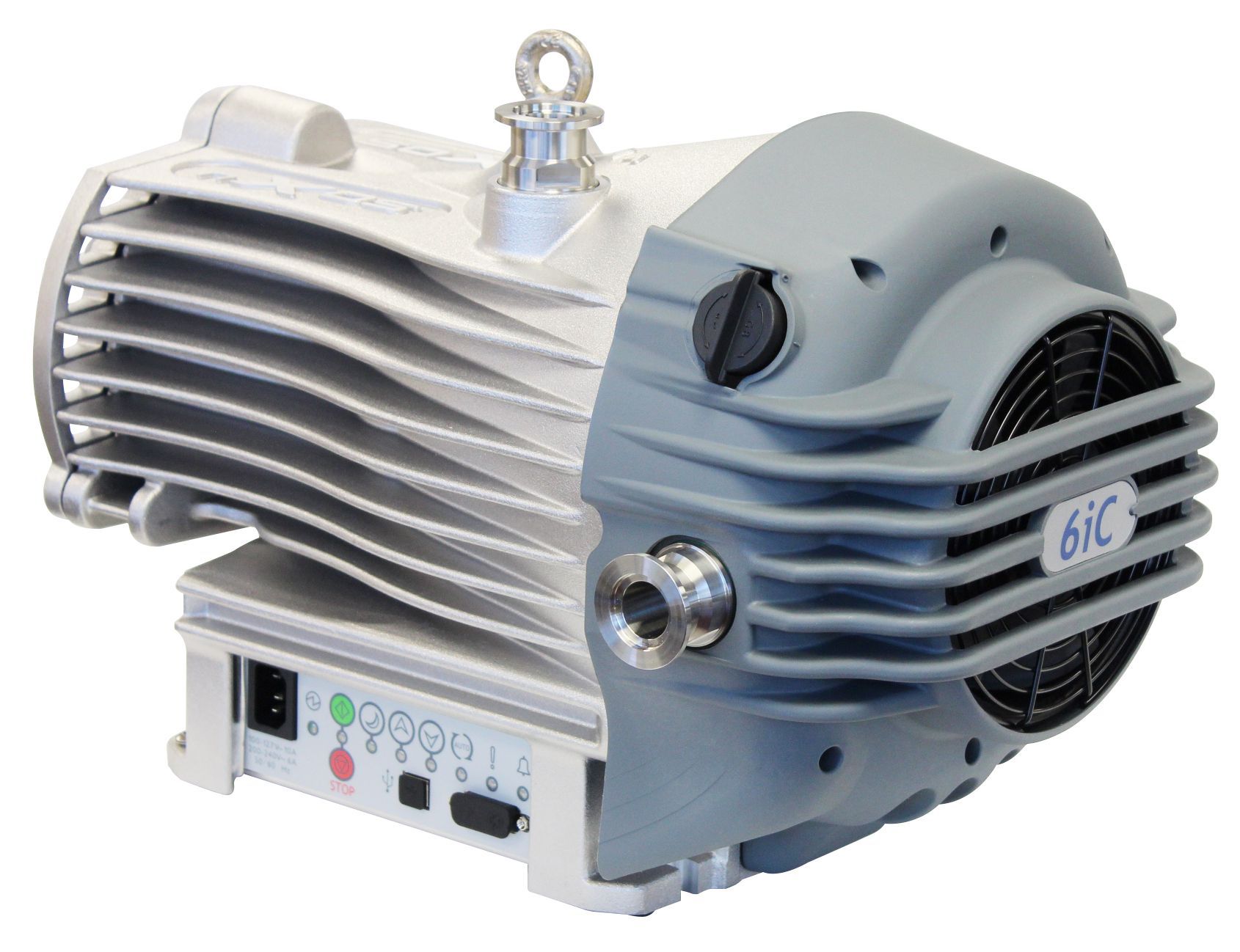

| Vacuum | Ultimate vacuum level: better than 500 microns/millitorrs (may vary based on your altitude) Mechanical vacuum gauge range: 0 to 30 inch mercury Mechanical vacuum gauge type: oil-filled Vacuum port: KF25 flange x 1 Vent port: KF25 flange x 1 Vacuum pump: Sold separately Approximate time to reach full vacuum: With Edwards E2M28 21 cfm pump: 8 minutes With Ai SuperVac 11.3 cfm pump: 11 minutes |
| Weight | Unit: 710 Lbs, shipping: 1114 Lbs |
| Dimensions (WxDxH) | Unit: 33 x 37 x 52" Shipping: 46 x 39 x 60" |
| Shelves | Heated shelves: 6 non-removable aluminum shelves, 25 x 29.25 inches (WxD) each Optional stackable aluminum shelves: 25 x 29.25 x 2.375 inches (WxDxH) Distance between shelves (without stackable shelves): 5 inches Distance between shelves (with 6 stackable shelves): 2.375 inches Total area without stackable shelves: 731 x 6 = 30 sq ft or 4386 sq inch Total area with 6 stackable shelves: 731 x 12 = 60 sq ft or 8772 sq inch Max. load capacity per shelf: 20 Lbs |
| Door gasket material | Silicone or Viton |
| Observation window | 1/2" tempered safety glass |
| Safety | Built-in circuit breaker Overheat shutoff protection Secondary over-temp protection dial |
| In-door lights | White LED |

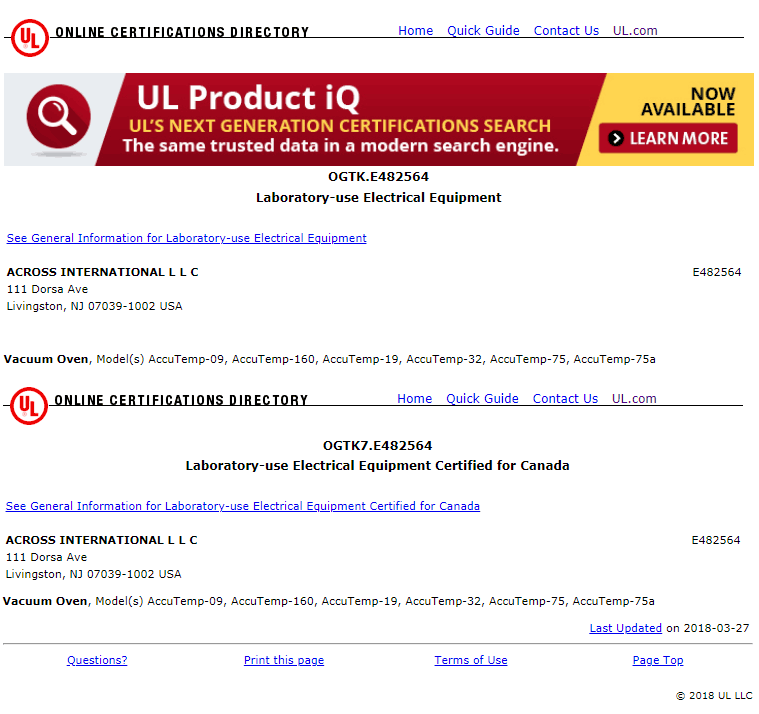

| Compliance | UL (E482564), CE |
| Warranty | 2 years |
Standard package
|
Related products
-

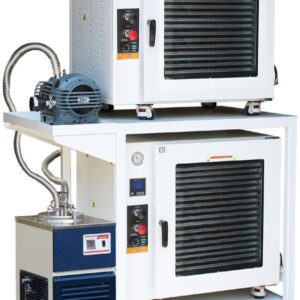

Ai 2-Oven 7.5 Cu Ft Package with Mobile Cart, Cold Trap & Pump
$56,811.88 Select options -
316L SST Grade Chamber 250C 26 Shelf Max 16 CF 5 Sided Heating Vacuum Oven 220V ETL
$25,038.48 Select options -

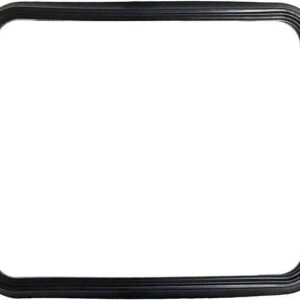

Standard Silicone Door Sealing Gasket for Ai Vacuum Ovens
