30mm Diameter ID Dry Pressing Die Set
30mm Diameter ID Dry Pressing Die Set - Image 2
30mm Diameter ID Dry Pressing Die Set - Image 3

30mm Diameter ID Dry Pressing Die Set

$833.69

A set of 30mm diameter (ID) hardened steel dry pressing die set for pellet presses, ready for you to make 30mm diameter cylinder-shape pellets. Die set includes Two 30mm diameter cylinder-shape core dies One sleeve One support base One push rod One pellet ejector Important Always wear protection goggles during operation Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.

SKU: SDS30 Category:

Description

A set of 30mm diameter (ID) hardened steel dry pressing die set for pellet presses, ready for you to make 30mm diameter cylinder-shape pellets.

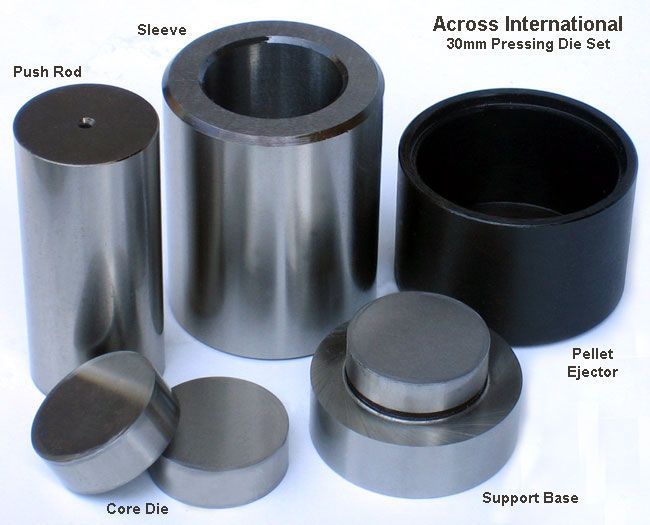

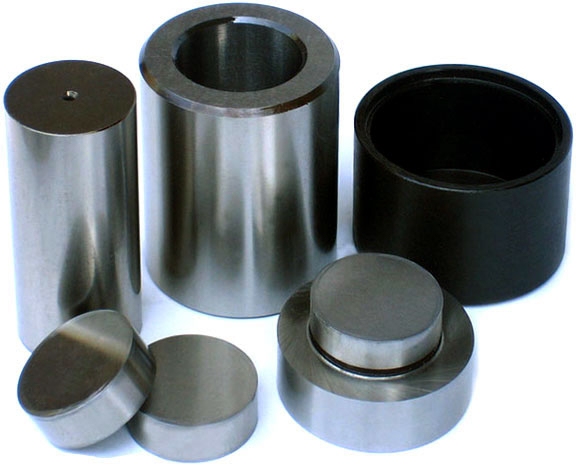

Die set includes

  • Two 30mm diameter cylinder-shape core dies
  • One sleeve
  • One support base
  • One push rod
  • One pellet ejector



Important

  • Always wear protection goggles during operation
  • Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.
  • Never fill the die more than 1/3 its sleeve height with your sample and do not apply pressure beyond 40 tons. Across International is not responsible for any damage caused by misuse.
Specifications

Specifications

Maximum Pressure40 metric tons
Rockwell HardnessRc 62
Diameter (ID)30 mm
Height110 mm (assembled without sample)
Sleeve Height60 mm
Sleeve Diameter (OD)48 mm
Tolerance0.01-0.02 mm (10-20 micron)
Max sample fill heightNot to exceed 1/3 of the sleeve height
Material

Core die & push rod:          W18Cr4V hardened carbon tool steel

Sleeve, ejector & support:  Cr12 hardened carbon tool steel
