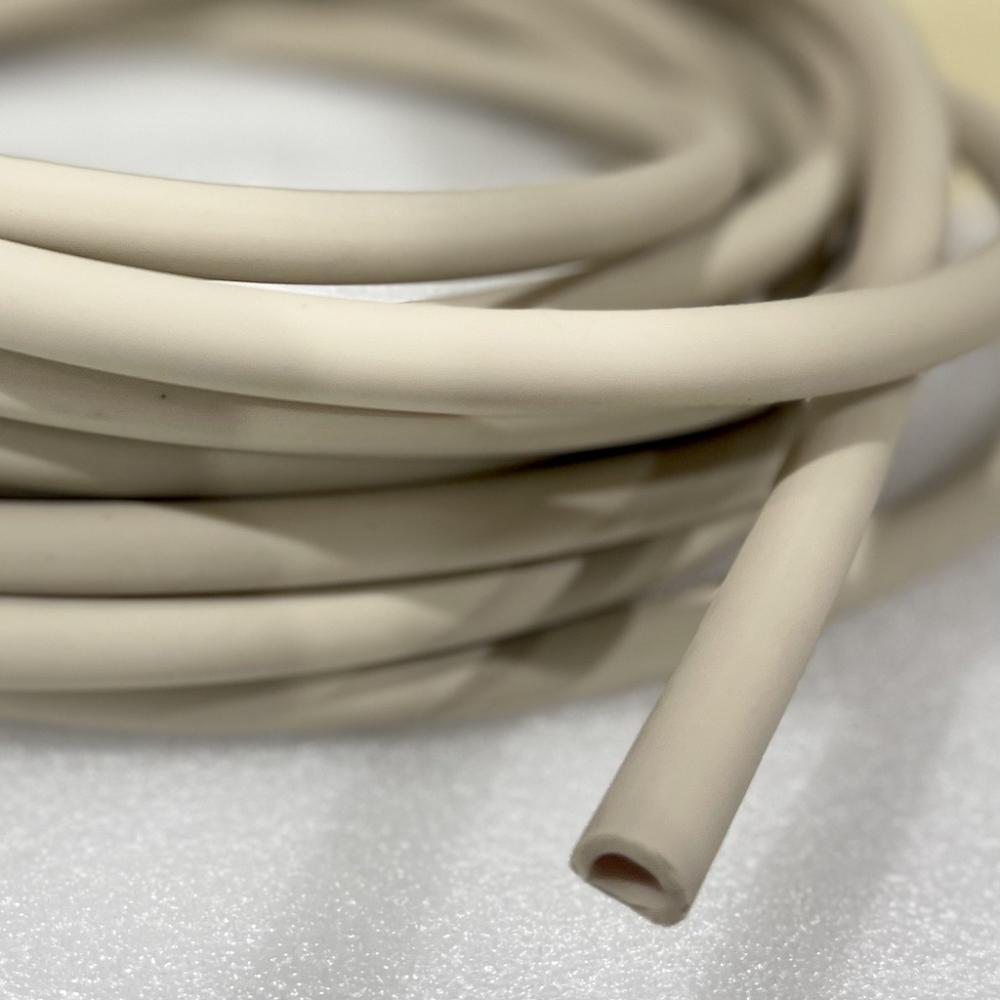

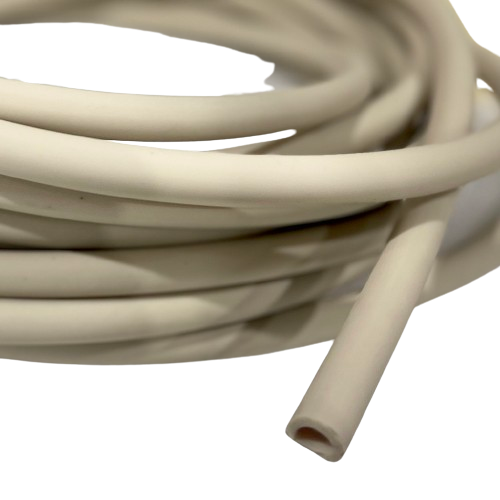

3/8" Santoprene Food Grade Chilling and Heating Tubing -75F to 275F

3/8″ Santoprene Food Grade Chilling and Heating Tubing -75F to 275F

$41.75

Material: Santoprene Tubing Dimension: 3/8″ ID X 5/8″ OD X 1/8″Wall Uses: This tubing is for use with all Ai Heating units and for C30 Recirculating Units. Shore Hardness: Physical Characteristics Temperature and Pressure Tubing Operating Pressure: Not to exceed 50 psi Operating Temperature: -75F to 275F Compliance FDA Food contact, Unspecified rating NSF STD-51 UL QMFZ2 UL QMFZ8

Product total
Options total
Grand total
SKU: SCH.xF Category: Brand:

Description

Material: Santoprene



Tubing Dimension:  3/8″ ID X 5/8″ OD X 1/8″Wall



Uses: This tubing is for use with all Ai Heating units and for C30 Recirculating Units.

Shore Hardness:

HardnessTypical Value (English)Typical Value (SI)Test-Based On

Shore A, 15 sec, 73℉ (23℃)

7878ISO 868



Physical Characteristics

PhysicalTypical Value (English)Typical Value (SI)Test-Based On
Density / Specific Gravity0.9600.960ASTM D792
Desity0.960 g/cm^30.960 g/cm^3ISO 1183



Temperature and Pressure

ExtrusionTypical Value (English)Typical Value (SI)
Drying Temperature180 ℉82 ℃
Drying Time3.0 hr3.0 hr
Melt Temperature 395 ℉202 ℃
Die Temperature400 ℉204 ℃
Back Pressure725 to 2900 psi5.00 to 20.0 MPa



Tubing Operating Pressure: Not to exceed 50 psi

Operating Temperature: -75F to 275F



Compliance

  • FDA Food contact, Unspecified rating
  • NSF STD-51
  • UL QMFZ2
  • UL QMFZ8



ExtrusionTypical Value (English)Typical Value (SI)
Drying Temperature180 ℉82 ℃
Drying Time3.0 hr3.0 hr
Melt Temperature 395 ℉202 ℃
Die Temperature400 ℉204 ℃
Back Pressure725 to 2900 psi5.00 to 20.0 MPa
