3.2 CF Vacuum Oven 250C ETL Certified with 316L Chamber SST 110V 50/60Hz
$16,049.80
SST (stainless steel) tubing refers to internal tubing and compression. external tubing not included. Features UL certified. The new KF25 inlet filter keeps your oven clean at all times (included with oven purchase). All stainless steel internal tubing provides a higher ultimate vacuum, holds the vacuum 10 times longer, and requires minimum maintenance.
Description
SST (stainless steel) tubing refers to internal tubing and compression. external tubing not included.

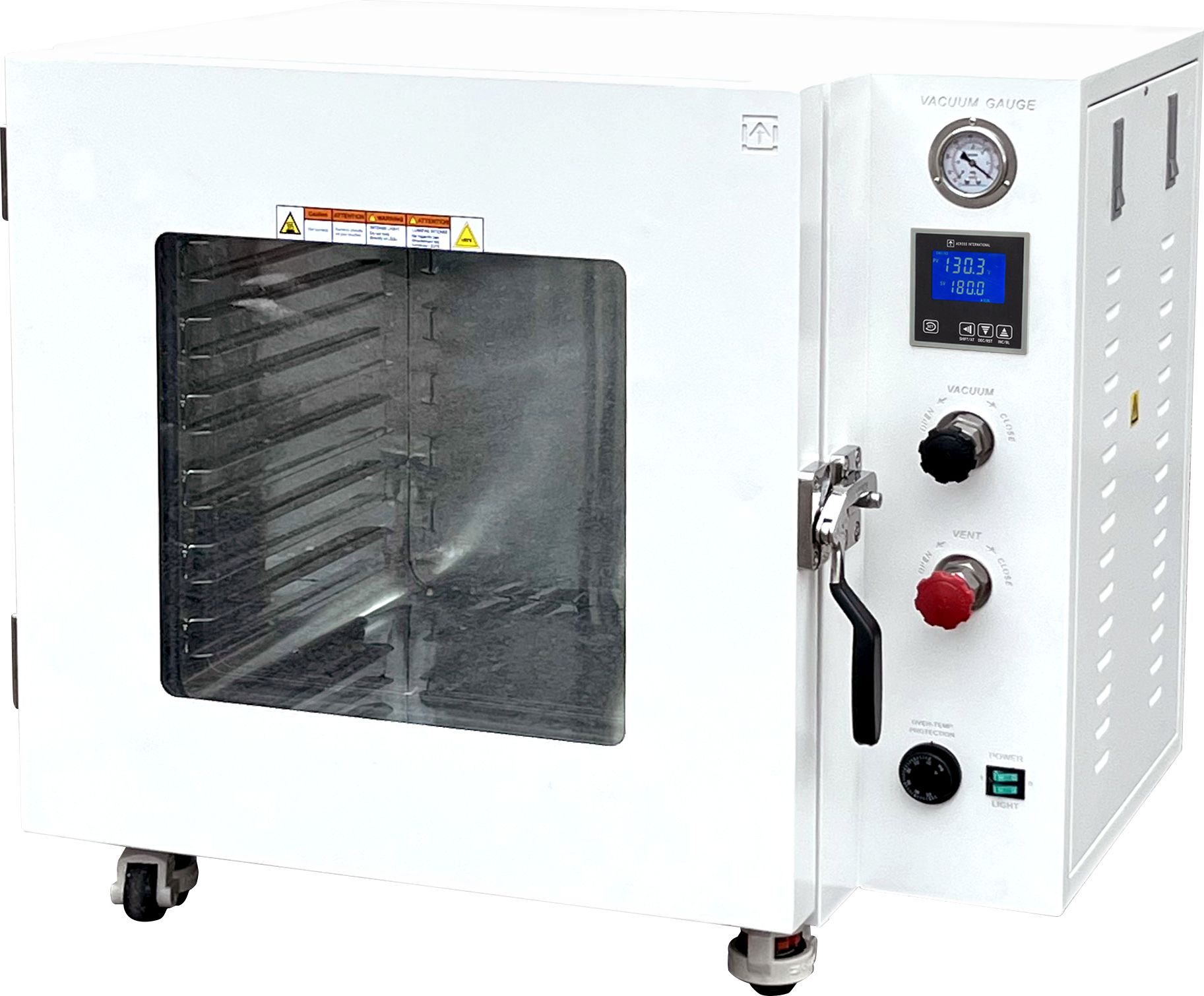

Introducing the new UL certified 3.2. cu ft 316L Chamber vacuum ovens, this certification is required by many municipalities, and also provides a higher standard of equipment safety and conformity. This unit comes standard with a secondary over-temp protection dial, stainless steel tubing, stainless steel vacuum & vent valve, oil-filled vacuum gauge, and a two-year warranty. The Across International AT-X series features a chamber with removable shelves and is heated from all 5 chamber walls. The removable shelves provide ease of operation, more flexibility, and easier cleaning procedures.
Every one of our vacuum ovens goes through a 2-time 24-hour vacuum leak test, and is quality controlled in New Jersey or Nevada before leaving our warehouses.
Features

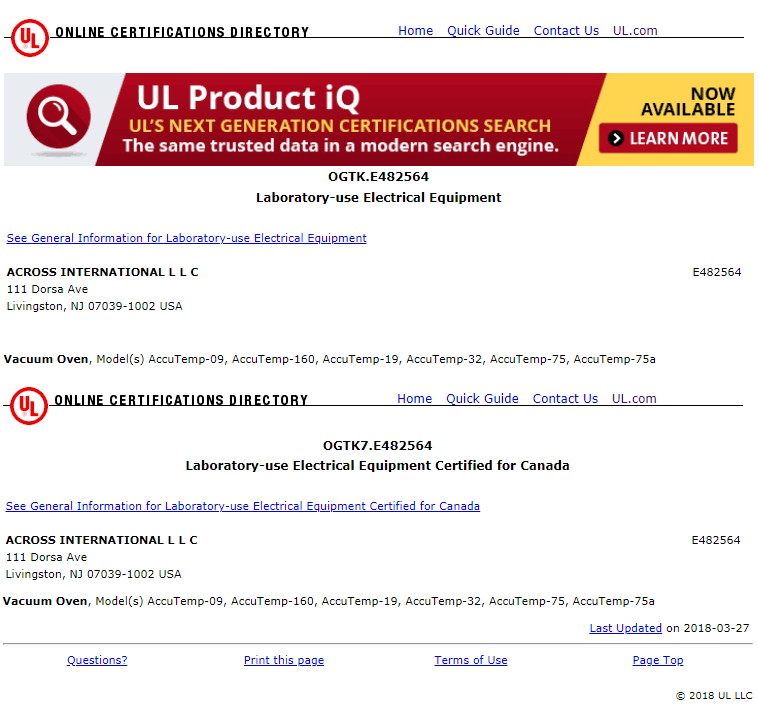

- UL certified.
- UL certified.
- The new KF25 inlet filter keeps your oven clean at all times (included with oven purchase).
- All stainless steel internal tubing provides a higher ultimate vacuum, holds the vacuum 10 times longer, and requires minimum maintenance.
- Oil-filled mechanical vacuum gauge provides more accurate reading, longer gauge life and minimizes shipping damage.
- All stainless steel vacuum and vent valves gives you cleaner connection, more accurate control and long term durability.

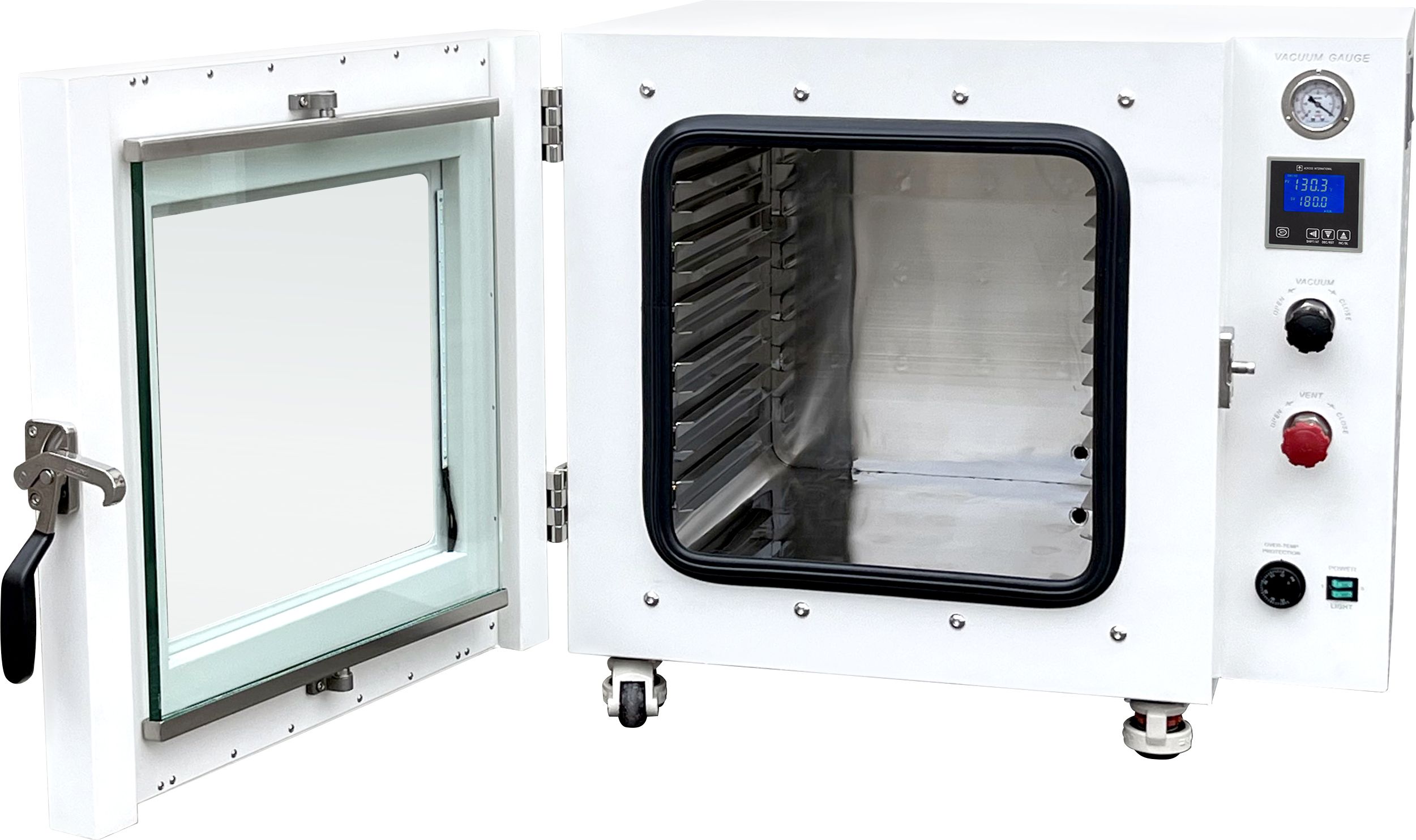

- Removable shelves for ease of operation and more flexibility.
- Dual layer observation window with 5/8″ tempered safety glass.
- 4th gen low proportional gain temperature controllers keep your oven temperature accurate
- Easy-to-clean stainless steel interior for exceptional durability and ease of maintenance.
- A vacuum environment lowers the boiling point (great for processing heat sensitive materials) and reduces drying time for materials like paste or powder which cannot otherwise be easily dried.
- Built-in swivel casters with leveling feet.
- Built-in alarm alerts you when oven has been shut down by safety circuitry due to out of range temperature.
- For improved temperature ramping, run the auto-tune procedure as outlined in the manual.
- Best choice for the curing and converting of oil extracts. With deep vacuum level, they can operate at temperatures which allow the degassing/purging process to occur rapidly, thus increase productivity and allow for the production of superior quality products with minimal processing time.
- All ovens shipped from our New Jersey or Nevada location for quick delivery.
- 2-year warranty and lifetime US-based parts and service support.
- Guaranteed US based phone and email assistance from an Ai support engineer within 30 minute

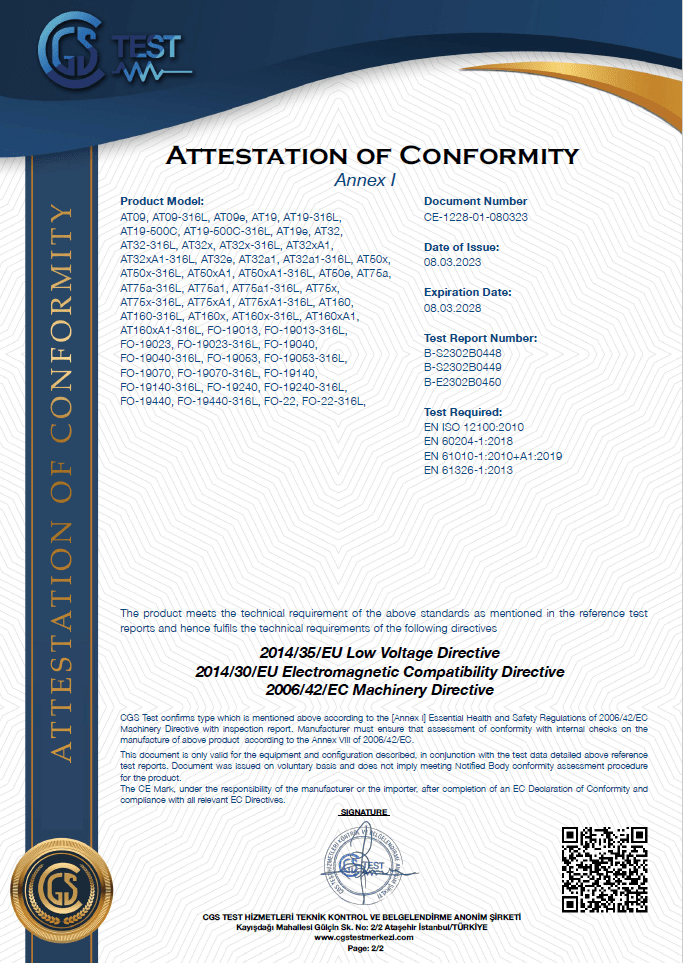

Manufactured in accordance with
- UL 61010-1
- CSA C22.2
- ISO 9001:2000
- ISO 12100-1:2003, ISO 12100-2:2003
- EN1050:1996, EN294:1992, EN60204-1:2006

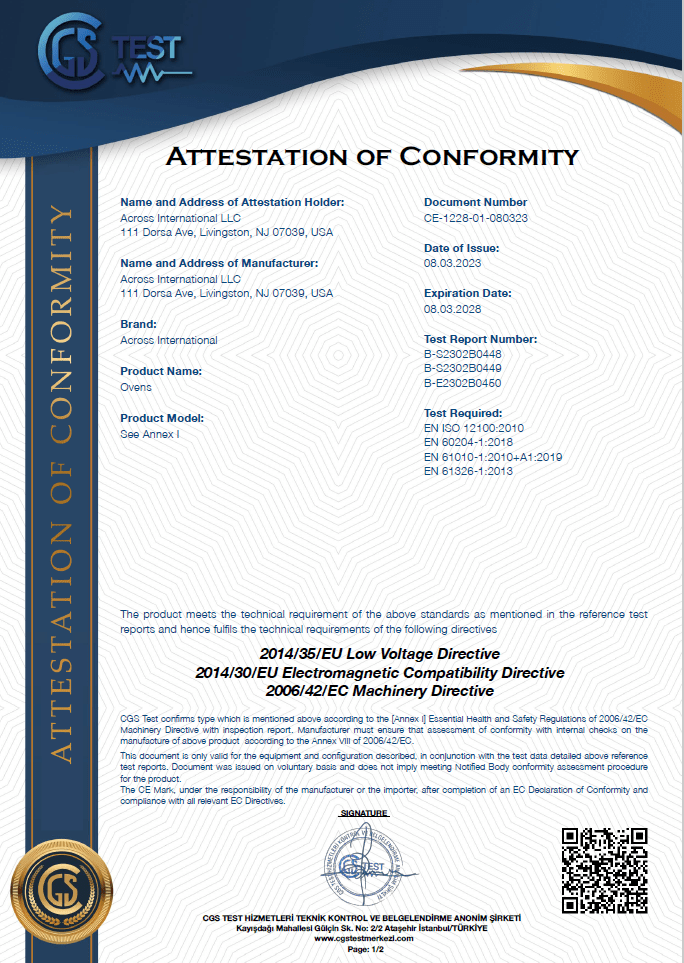

- CE
IMPORTANT! NEVER LEAVE YOUR OVEN UNATTENDED WHILE OPERATING. Across International is not responsible for any loss of material inside of the oven.
Vacuum oven specifications
| Electric | 110V +/-10% 50/60Hz 1-PH, 2,500 watts |
| Heater | 5-sided heating (left 600W, right 600W, top 600W, bottom 600W, back 200W x 3) |
| Chamber | Size: 18 x 18 x 18" Material: Stainless steel Capacity: 3.2 cubic feet |
| Temperature control | Controller: low proportional gain, microcomputer PID controlled with LCD display Range: ambient to 250°C (or 480°F) Display units: Fahrenheit or Celsius Uniformity: +/- 5% of setpoint Dwelling timer range: 1 to 9999 minutes Warm-up time to 100°F: 35 minutes Warm-up time to 480°F: 60 minutes |

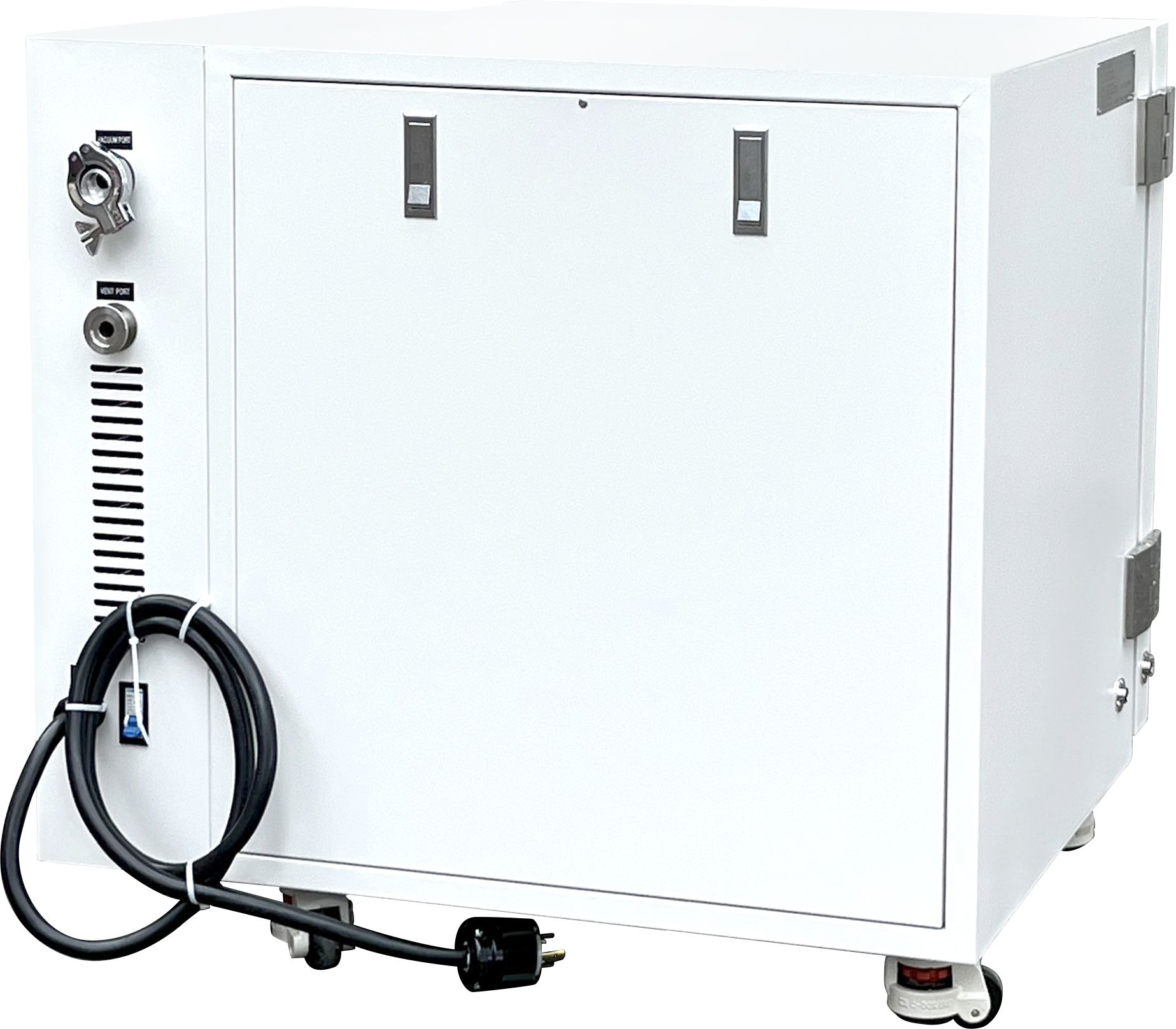

| Vacuum | Ultimate vacuum level: better than 500 microns/millitorrs Mechanical gauge range: 0 to 30 inch mercury Vacuum port: KF25 flange x 1 Vent port: KF25 flange x 1 Vacuum pump: Sold separately |
| Weight | Unit: 260 Lbs, shipping: 400 Lbs |
| Dimensions (WxDxH) | Unit: 34 x 25 x 30.5" Shipping: 40 x 33 x 37.5" |
| Shelves | Capacity: 12 shelves max. Comes standard with oven purchase: 6 shelves |
| Door gasket material | Silicone or Viton |
| Observation window | 1/2" tempered safety glass |
| Safety | Built-in circuit breaker Overheat shutoff protection Secondary over-temp protection dial |
| In-door lights | White LED |
| Warranty | 2 years |
| Compliance | ETL, CE |
| Model | AT32x Vacuum drying oven (400C) $9,990.00 |
| Electrical requirements | 220V +/-10% 50/60Hz,Single phase 20A,4.4kilowatt |
| Chamber | Size: 450x450x450mm(Width xdeep xhigh) Material: Stainless steel |
| Heating | External heating element, 900w x4, 400w x2. It features the fastest heating speed, the most energy efficiency, and the most uniform heating. |
| Temperature control | Controller: Low proportional gain, microcomputer PID Control, with LCD Display range: ambient temperature to 400°C(or 212°F) Display unit: Fahrenheit or Celsius Duration of stay:1 to 9999 minutes |
| Vacuum | Mechanical vacuum gauge range: 0 to 30inch mercury Mechanical vacuum gauge type: oil-filled Vacuum port:KF25 flange x 1 Exhaust port: KF25 flange x 1 Vacuum pump: Sold separately |
| Size | Machine dimensions: 940*610*770mm (width x depth x height) Shipping dimensions: Not available |
| Door gasket material | Silicone or viton |
Standard package
|
Related products
-
Ai 2-Oven 3.2 Cu Ft Package with Mobile Cart, Cold Trap & Pump
$36,570.94 Select options -

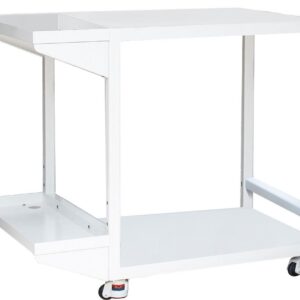

Heavy Duty Steel Mobile Cart for Ai 5.0/7.5 CF Vacuum Ovens
