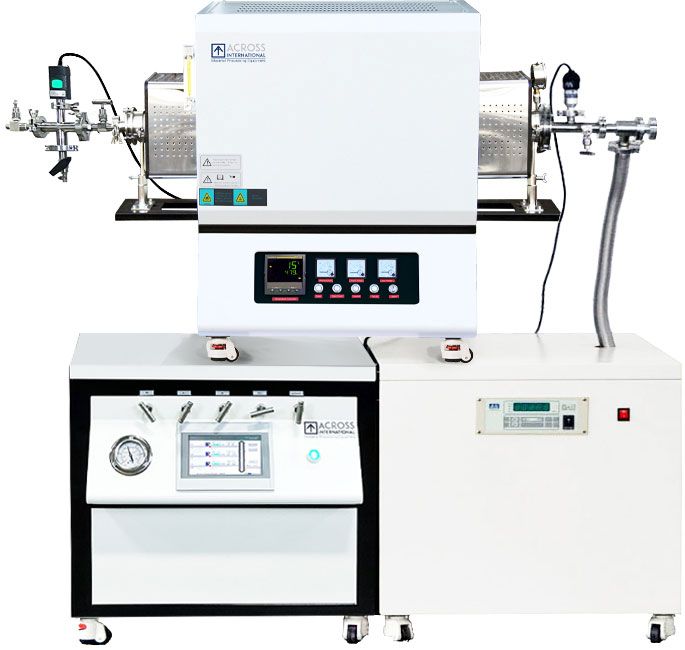

1700°C CVD Tube Furnace with Gas Mixing & Pumping System

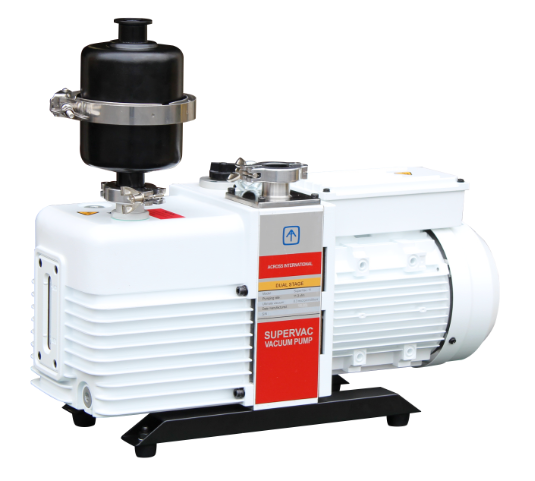

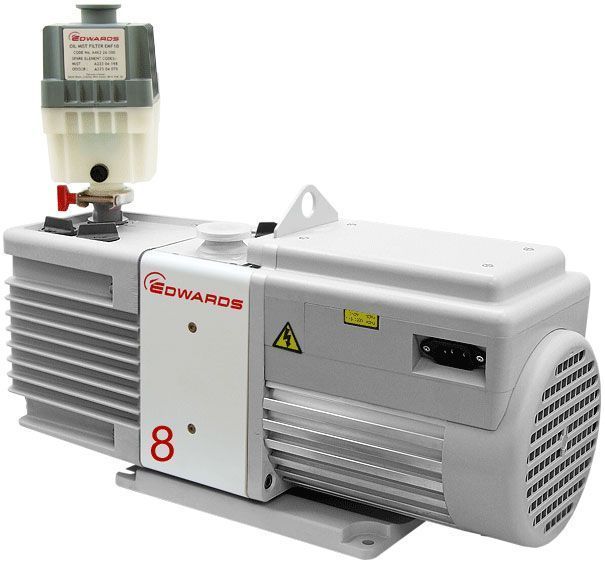

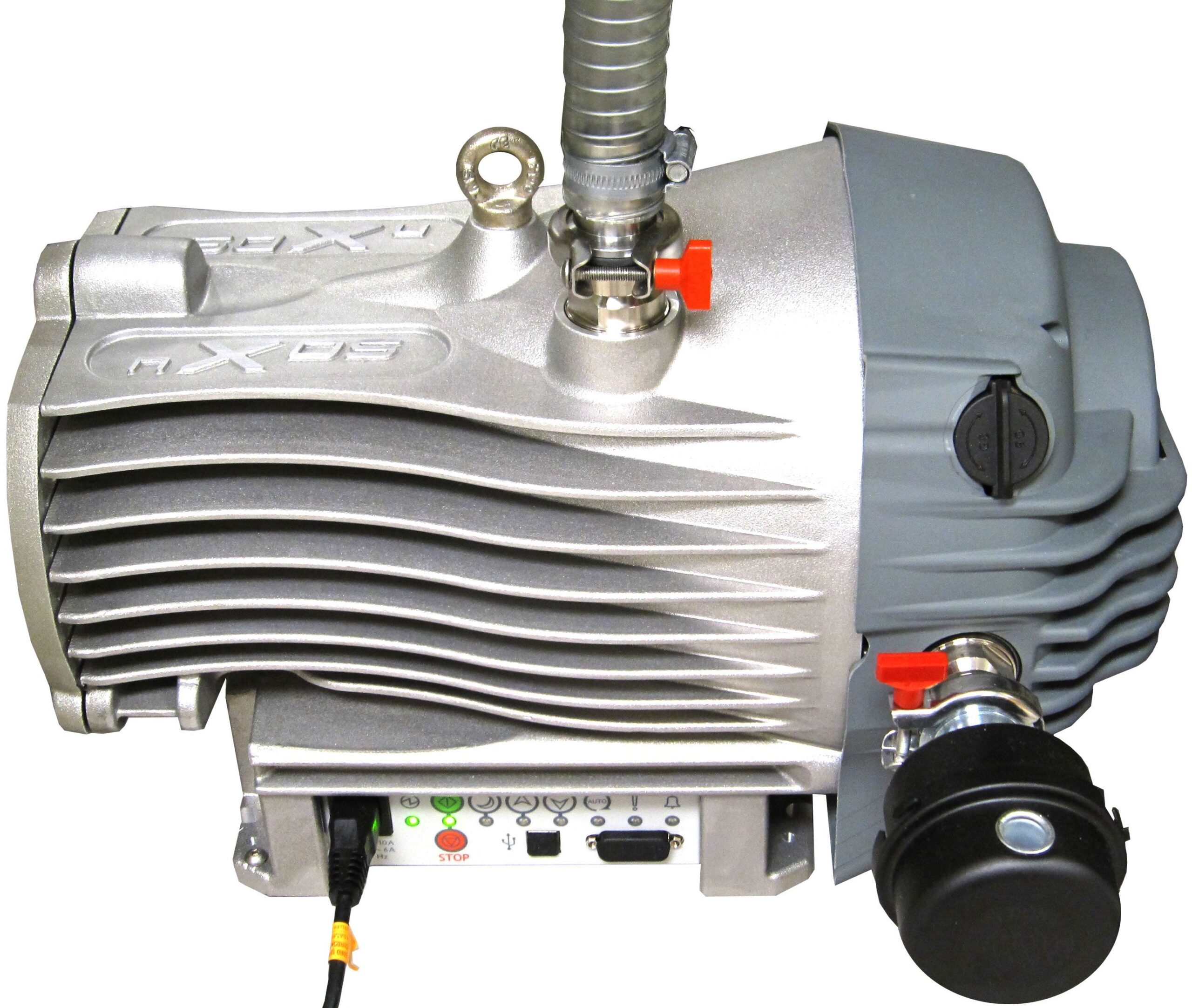

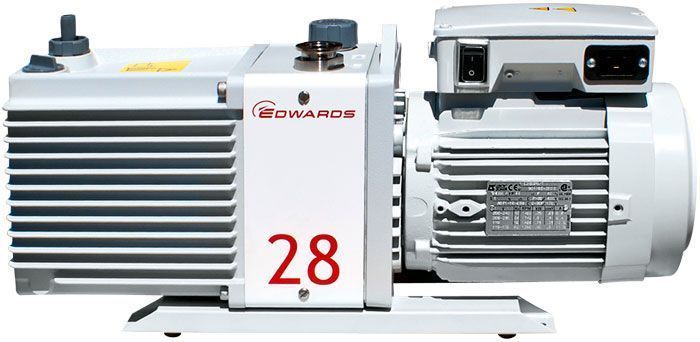

VACUUM PUMP MOBILE CART ONLY AVAILABLE IF YOU PURCHASE A PUMP AND A DIGITAL VACUUM CONTROLLER.

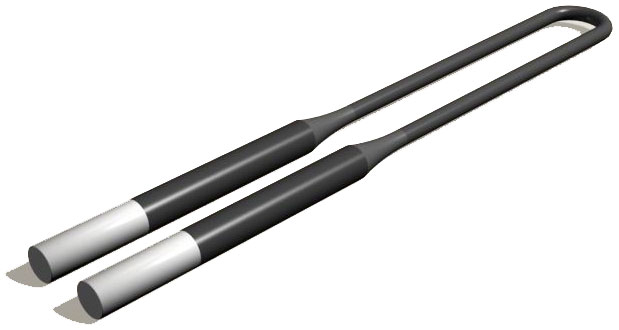

TF1700 series Chemical Vapor Deposition (CVD) tube furnaces feature a chamber with Mitsubishi (Japan) alumina fiber insulation and molybdenum silicide heating elements. A double walled steel internal housing helps minimize heat loss to exterior surface.

Furnace operation is controlled by Eurotherm (UK) digital controller with communication port, allowing the user to connect to a PC for remote control and monitoring of the furnace.

Controller Option:

Features

• Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.
• Dual flanges support ensures better sealing and longer tube life.

• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
• Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)
• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Built-in computer interface.

Safety

• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller’s manual) or when the thermocouple is broken or malfunctions.
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished.

Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane
