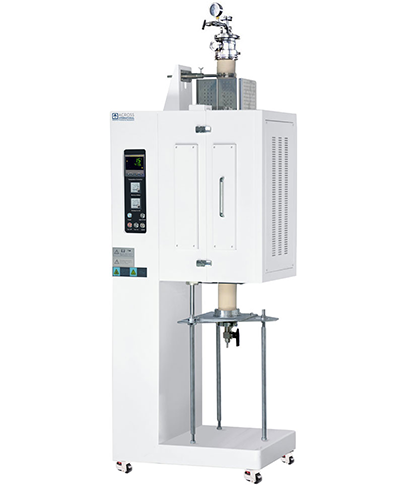

1500C 60-100mm OD 1-3 Zone Vertical Tube Furnace

VTF1500 series vertical tube furnaces feature a chamber with Mitsubishi (Japan) high quality alumina fiber insulation and SiC heating elements. A dual-wall steel internal housing helps minimize heat loss to exterior surface.

Furnace operation is controlled by Eurotherm (UK) multi-segment digital controller with built-in RS485 digital communications port and USB adaptor, allowing the user to connect to a PC for remote control and monitoring of the furnace. You can also save or export test results.

Features

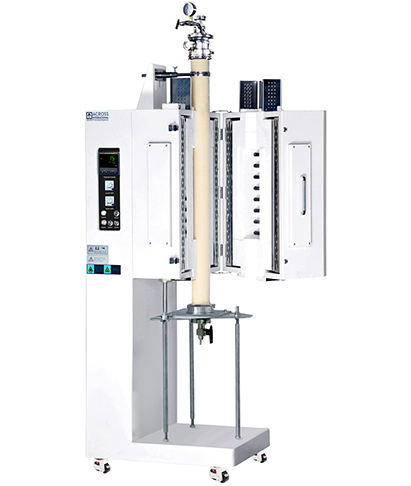

• Swing-open furnace chamber for fast and easy tube access.

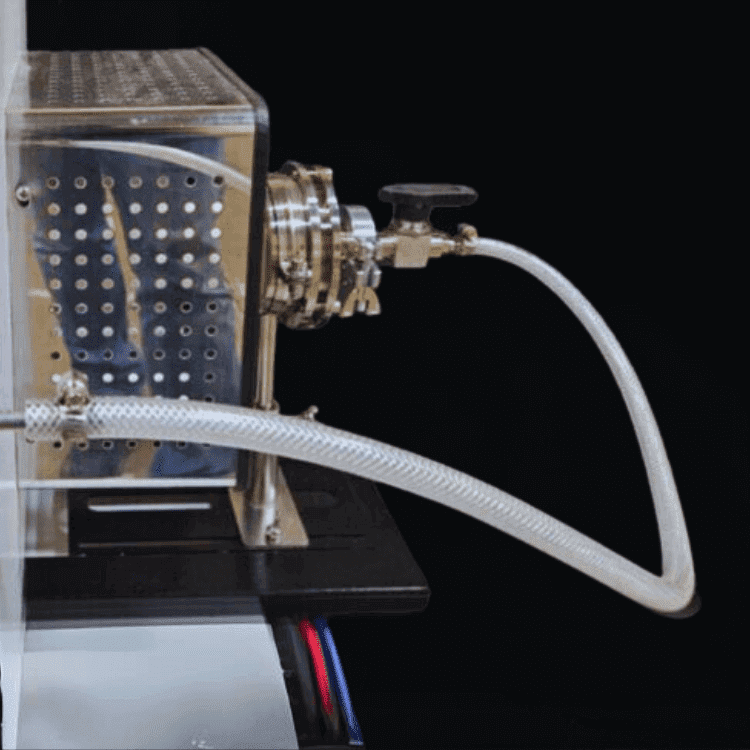

• The standard package includes a set of stainless steel vacuum sealing flanges with valves and pressure meter.
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
• Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)
• Built-in ammeter and dual voltmeters for easy monitoring and troubleshooting.
• Built-in computer interface.
• Long life type S thermocouple.

Safety

• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller’s manual) or when the thermocouple is broken or malfunctions.
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished.
• Limit switch turns off furnace once top is open.

Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.

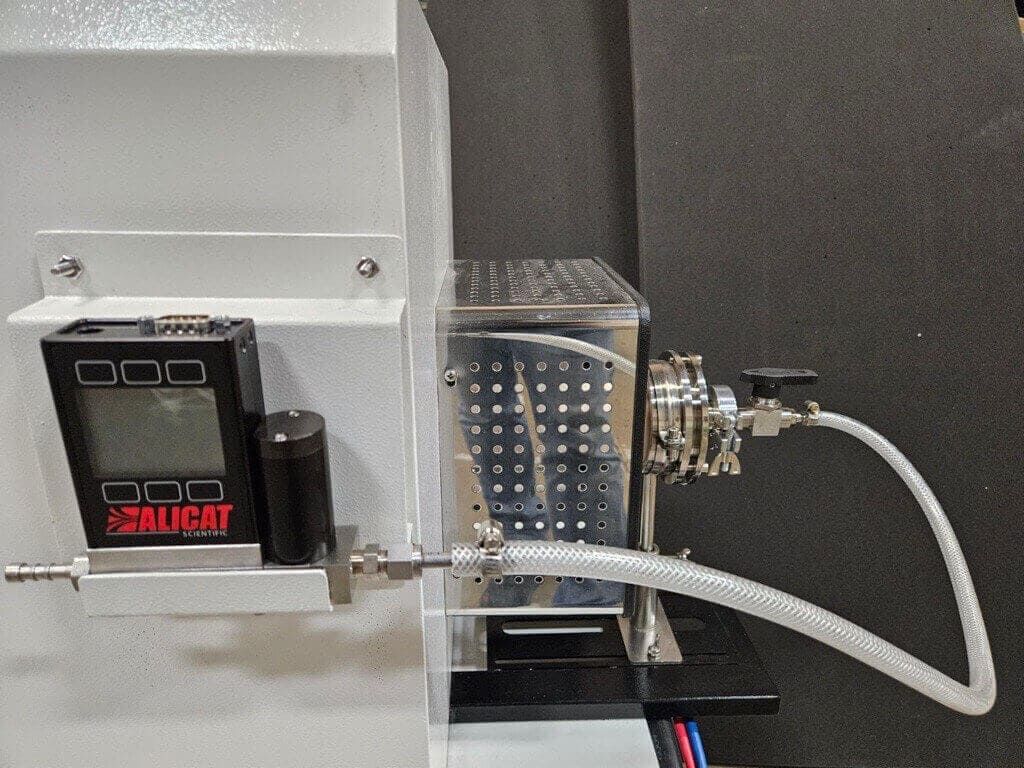

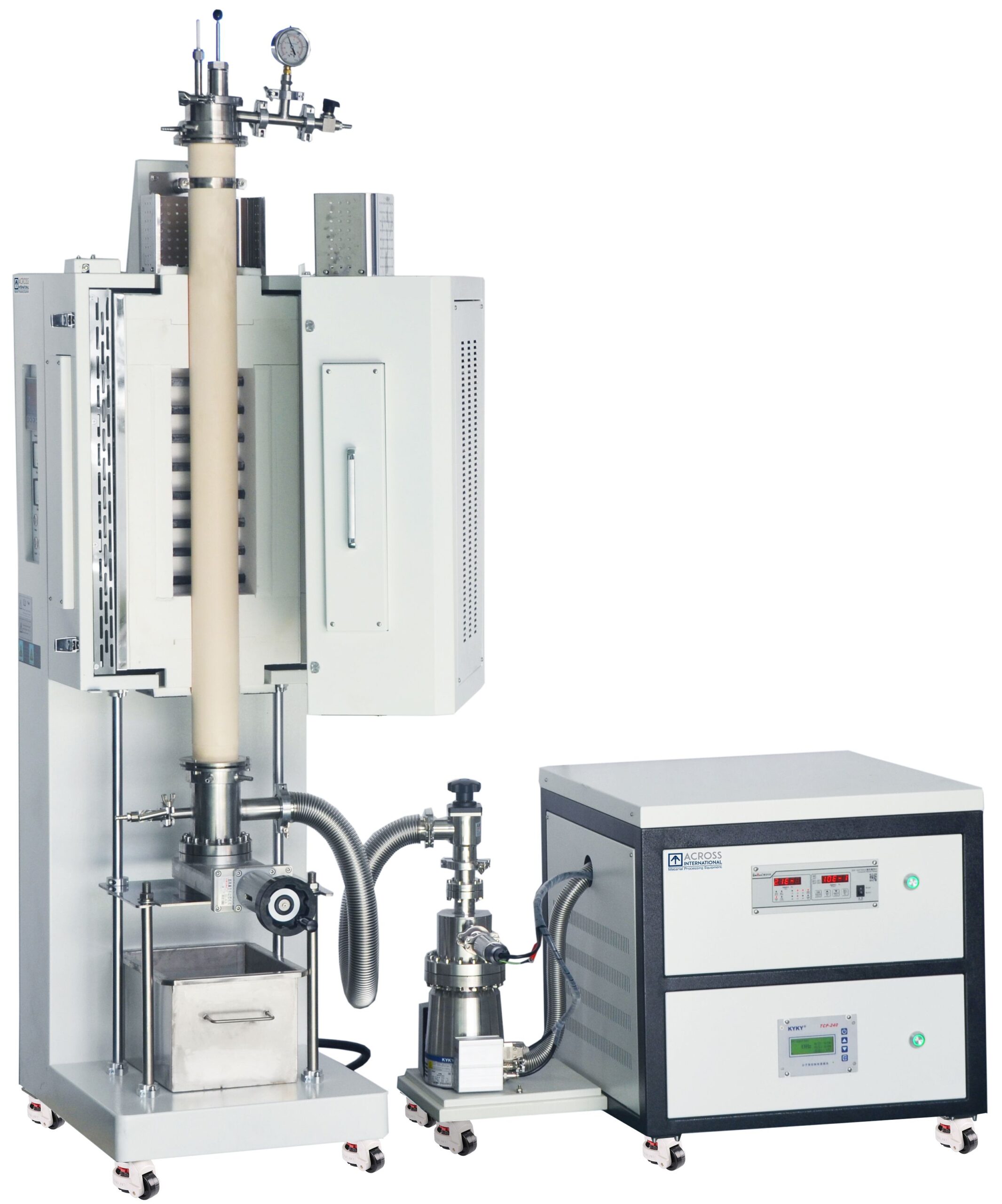

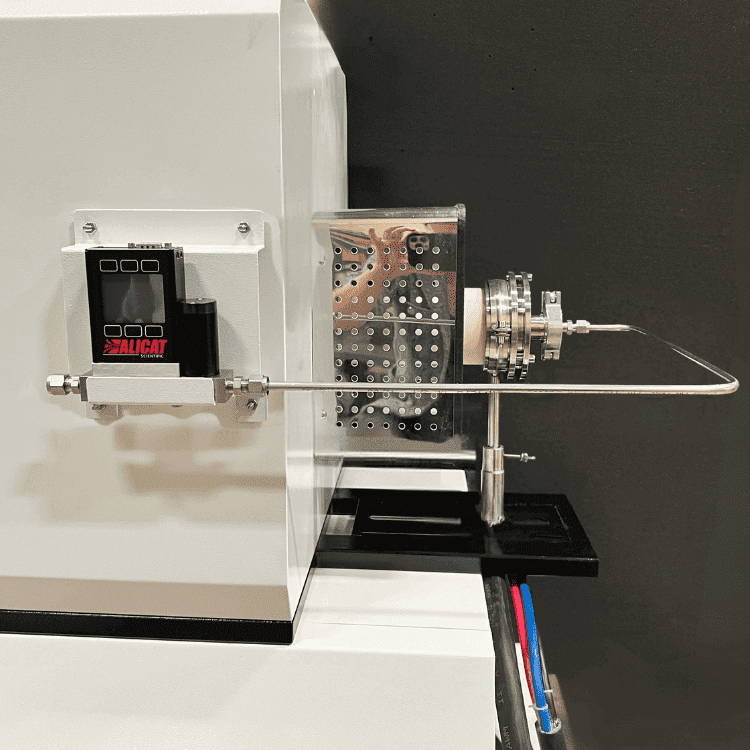

** All 3 pictures above for setup is for reference only. Actual setup can be configured many different ways based on user preference. The bracket plate for the mass flow controller can be magnetically attached and detached from the surface for ease of use**

Tubing sold separately
