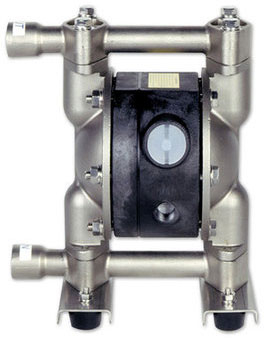

13.5 gpm Air Powered Double Diaphragm Liquid Pump

13.5 gpm Air Powered Double Diaphragm Liquid Pump

$2,250.43

LiquidPro LP14 series Air Powered Double Diaphragm (AODD) pumps provide a maximum flow rate of 13.5 gallons per minute. Pumps are available in aluminum, stainless steel (316), Kynar® (PVDF), groundable acetal, and polypropylene construction, with a wide variety of diaphragm materials.

Category: Tag:

Description

  • Model
  • LP14

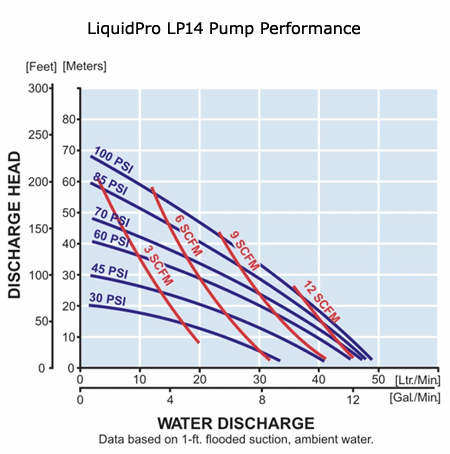

  • Max flow rate
  • 13.5 gallon per minute (gpm), or 51 liter per minuute
  • Liquid inlet/outlet
  • 1/2″ female NPT
  • Max liquid temperature
  • 180°C
  • Max solid
  • 1/32 inch
  • Air inlet
  • 1/4″ female NPT
  • Air exhaust
  • 3/8″ female NPT
  • Air motor material
  • Aluminum
  • Body material
  • 316 grade stainless steel
  • Elastomer material
  • EPDM (not suitable for use with heptane, ethanol or denatured isopropanol)

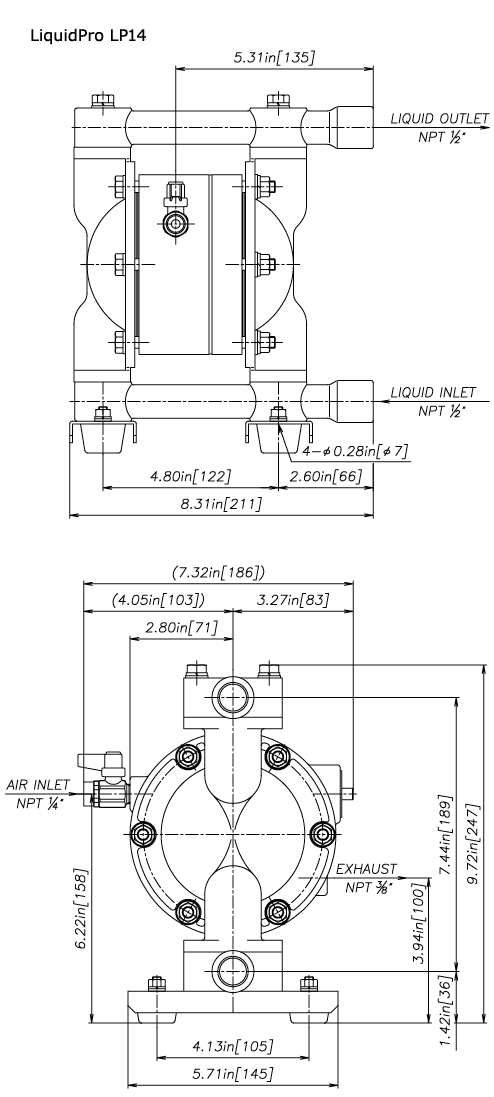

  • Pump dimensions
  • 5.7 x 8.3 x 9.7″ (WxDxH)
  • Recommended for
  • 100L stainless steel reactors
