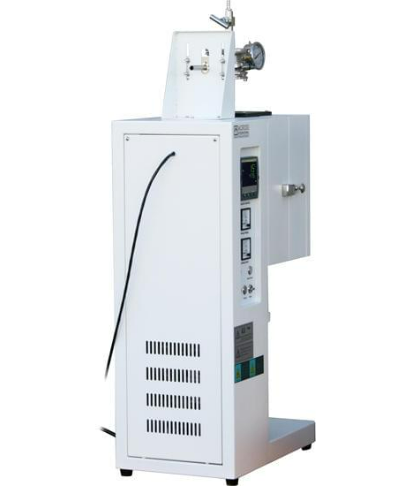

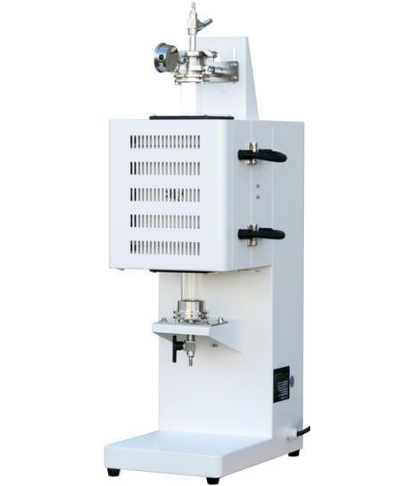

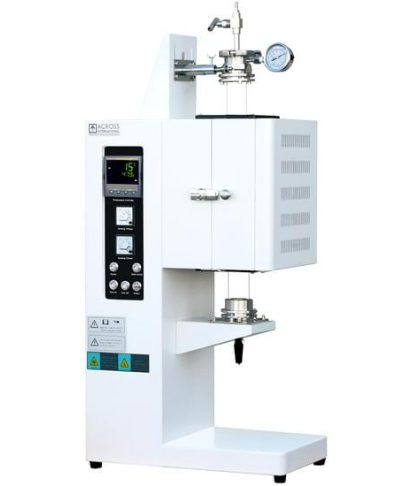

1200C 1-Zone 50mm OD Vertical Tube Furnace with Quartz Tube

VTF1200 50x600mm (ODxlength) portable vertical tube furnaces feature spiral wire coils embedded in Mitsubishi (Japan) alumina fiber insulation. A double walled steel internal housing helps minimize heat loss to exterior surface. Furnace operation is controlled by a 30-segment digital controller. All our furnaces are CE compliant.

Features

• Compact, portable and lightweight design.

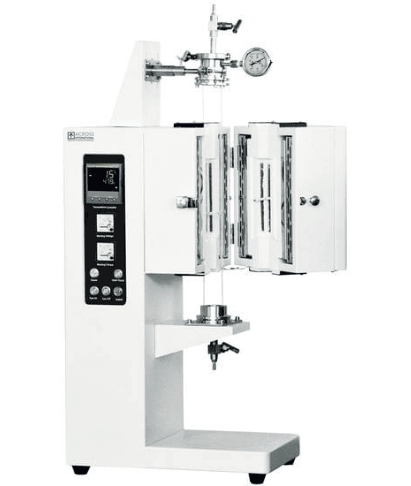

• Swing-open furnace chamber for fast and easy tube access.

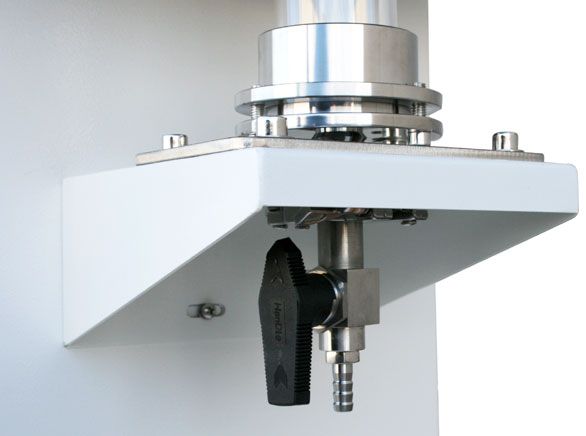

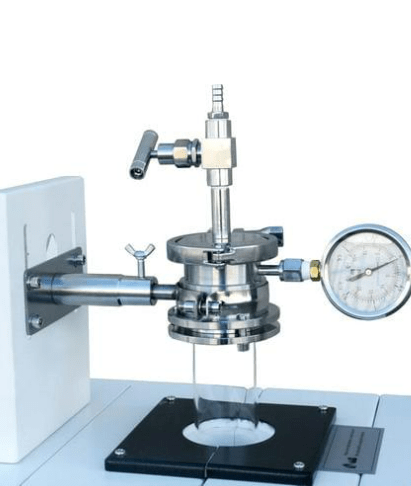

• Standard package includes set of stainless steel vacuum sealing flanges with valves and pressure meter.
• Microprocessor based self-tuning PID control provides optimum thermal process with minimal overshoot.
• Multiple atmosphere processes in a single cycle are possible (ex: binder burn out in air and parts sintering under rough vacuum or inert gas environment.)
• Long life type K thermocouple.


Safety

• Overheat protection shuts down the furnace if temperature is outside of acceptable range (refer to controller’s manual) or when the thermocouple is broken or malfunctions.
• Power failure protection resumes furnace operation right after the point of failure when power is reestablished.

Warning! NEVER fill furnace with explosive gases, including Hydrogen, Carbon Monoxide and Methane.

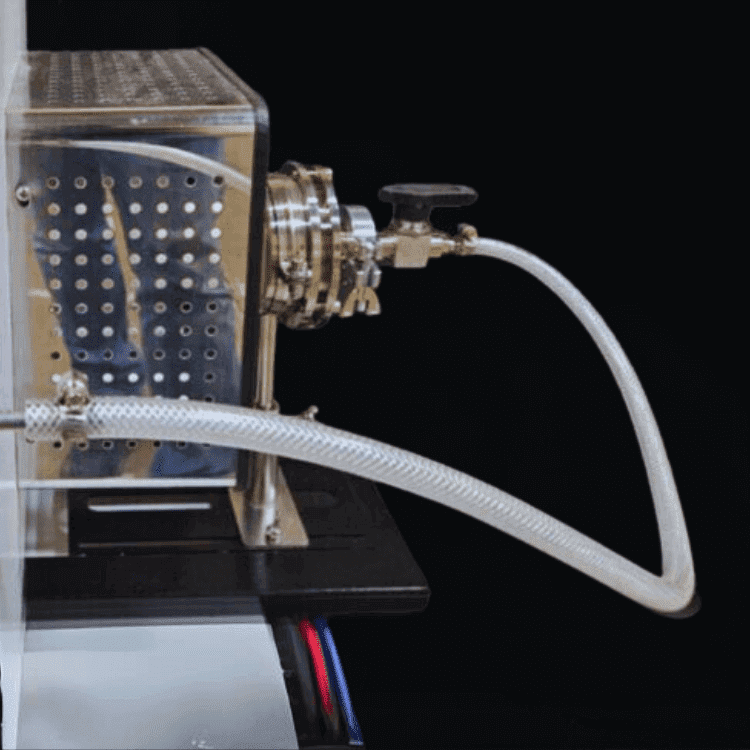

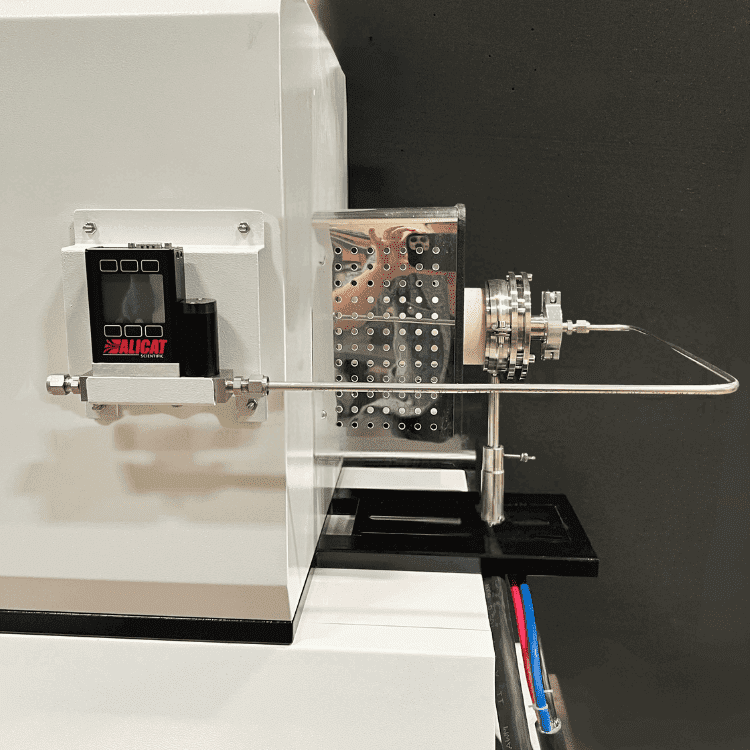

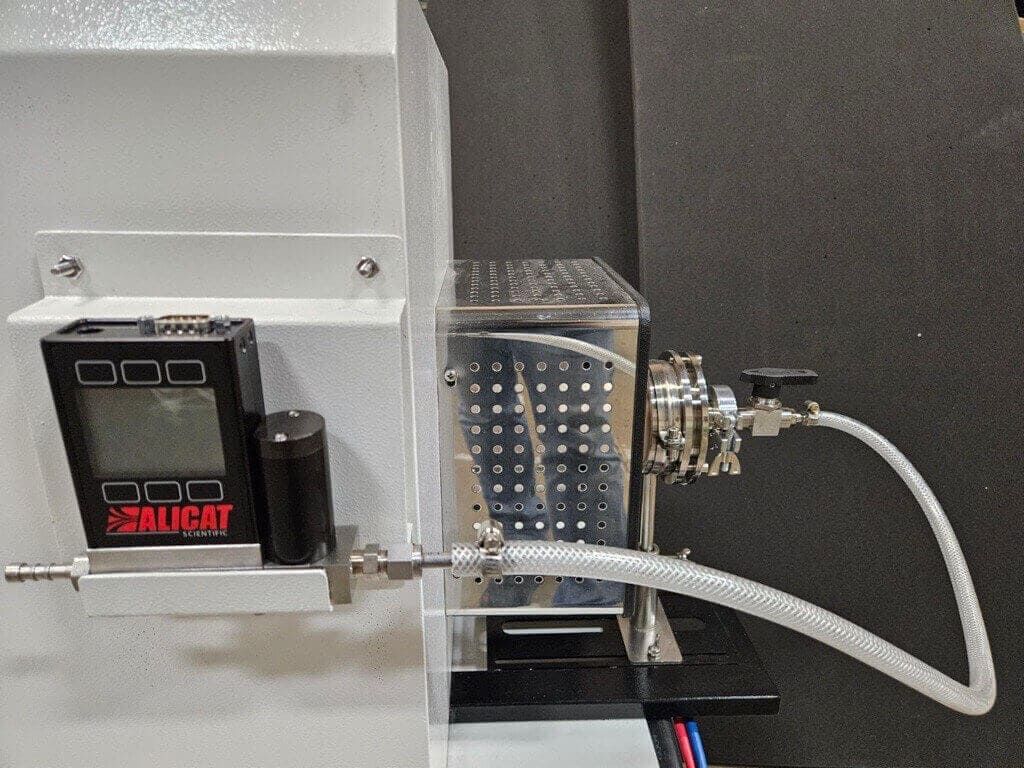

** All 3 pictures above for setup is for reference only. Actual setup can be configured many different ways based on user preference. The bracket plate for the mass flow controller can be magnetically attached and detached from the surface for ease of use**

Tubing sold separately
