100mm Diameter ID Dry Pressing Die Set
100mm Diameter ID Dry Pressing Die Set - Image 2

100mm Diameter ID Dry Pressing Die Set

$2,087.70

A set of 100mm diameter (ID) hardened steel dry pressing die set for pellet presses, ready for you to make 100mm diameter cylinder-shape pellets.

SKU: SDS100 Category:

Description

A set of 100mm diameter (ID) hardened steel dry pressing die set for pellet presses, ready for you to make 100mm diameter cylinder-shape pellets.

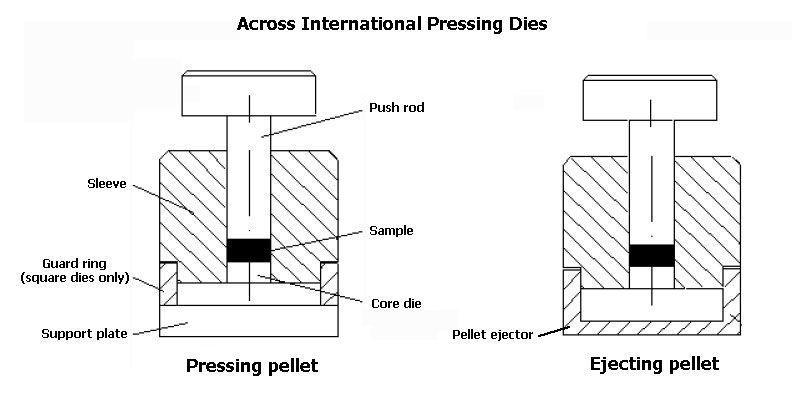

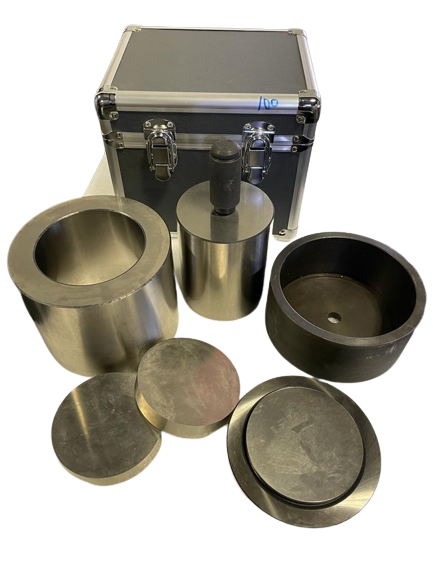

Die set includes

  • Two 100mm diameter cylinder-shape core dies made of highly polished hardened steel
  • One steel sleeve
  • One steel support plate
  • One push rod with detachable handle
  • One pellet ejector



Important

  • Always wear protection goggles and gear during operation
  • Clean the die set throughout with absolute ethyl alcohol and keep them in a dry box with silica gel after use to avoid rusting on the surface.
  • Never fill the die more than 1/3 its sleeve height with your sample and do not apply pressure beyond 250 tons. Across International is not responsible for any damage caused by misuse.
Specifications

Specifications

Maximum Pressure250 metric tons
Rockwell HardnessRc 62
Diameter (ID)100 mm
Height300 mm (assembled without sample)
Sleeve Height120 mm
Sleeve Diameter (OD)150 mm
weight62lb
Tolerance0.01-0.02 mm (10-20 micron)
Max sample fill heightNot to exceed 1/3 of the sleeve height
Die MaterialCr12 hardened carbon mold steel
